Exterior View
Maximum Rating

2750 BHP

Rated Speed

1000 rpm

Emissions

Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.3 g and 0.5 g/bhp-hr NOx

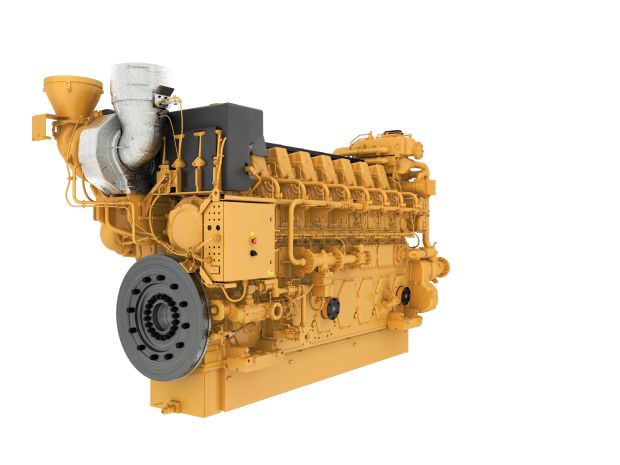

G3608 A4 Gas Compression Engine

ABOUT THE G3608 A4

G3600 ADEM™4 engines provide a wide range of power options to fit your gas compression application. G3600 ADEM™4 engines bring the highest uptime in the industry and long operating intervals between overhaul. Operators that use G3600 ADEM™4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 ADEM™4 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3608 ADEM™4 Gen 1 gas engine with standard ratings: 1864 bkW (2500 bhp) @ 1000 rpm and Cat G3608 ADEM™4 Gen 2 gas engine standard ratings: 1864 bkW (2500 bhp) @ 1000 rpm and uprated ratings: 2051 bKW (2750 bhp) @ 1000 rpm. NSPS site compliant capable.

The G3608 A4 model is not yet in your cart.
Click on the add to cart button to build an equipment list.
Add the G3608 A4 Model to the Cart

TAKE THE G3608 A4 FOR A SPIN

GET A PEEK INSIDE THE G3608 A4’S CABIN
GET A PEEK AT THE EXTERIOR OF THE G3608 A4

COMPARE THE G3608 A4 TO OTHER Oil-and-gas

Maximum Rating
2750BHP
Rated Speed
1000rpm
Emissions
Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.3 g and 0.5 g/bhp-hr NOx
Minimum Rating
2500BHP
Compression Ratio
Gen 1 (9.2:1) Gen 2 (7:6:1)
Length
199.62in
Aspiration
Turbocharged-Aftercooled
Width
2188.8mm
Rotation from Flywheel End
Counterclockwise
Displacement
10350in³
Height
116.18in
Flywheel Teeth
255
Oil Change Interval
5000 hours
Ignition, Protection
ADEM™4
Stroke
11.8in
Weight – Dry
46500lb
Bore
11.8in
Cooling System
140gal (US)
Lube Oil System – Refill
241gal (US)
  • Air Inlet System
    • Air Cleaner
    • Air Inlet Adapter
  • Control System
    • ADEM 4
  • Cooling System
    • ANSI Class 150 4 inch Flange (outlet water connection)
    • ANSI Class 150 6 inch Flange (Inlet Water connection)
    • Engine driven water pump
    • Water Jacket Outlet Regulator 88° C
  • Engine System
    • Engine rating and speed selection
  • Exhaust System
    • Hard heat shielded exhaust manifolds. SAE Standard
    • Vertical Exhaust Outlet
  • Flywheel And Flywheel Housing
    • Flywheel SAE Standard
  • Fuel System
    • ANSI Class 150 2 inch Flange (Customer Connection)
    • Fuel Filter
    • Gas Pressure regulator
  • General
    • Paint
  • Instrumentation
    • Basic HMI Engine Interface
  • Lube System
    • Breathers
    • Closed Crankcase ventilation system
    • Engine driven oil pump
    • Front and Rear Oil Drains
    • Oil filter
    • Oil Pan
    • Oil Supply line
    • Pre-lubrication Pump
    • Temperature regulated oil cooler
  • Mounting System
    • Six mounting feet
  • Mountin System
    • Two Lifting eyes
  • Power Take-offs
    • Damper guard, Stub Shaft
    • Single Damper
  • Protection System
    • Crankcase explosion relief valve
  • Starting System
    • Air starting motor
    • Engine Barring Device
  • Telematic System
    • Cat Connect Technology
  • Air Inlet System
    • Heavy-duty air cleaner — with precleaners
  • Control System
    • Software Development
  • Exhaust System
    • Exhaust Expander
    • Flex EXH Fitting
    • Weld Flange EXH
  • Fuel System
    • Fuel Connection
  • General
    • Language Decals
    • Service Tools
  • Lube System
    • Lubricating Oil
    • Oil Level regulator
  • Mounting System
    • Six mounting plates
  • Telematic System
    • Cell – Satellite Radio
    • Interconnect Harness
    • LAN Adapter
    • Product Link Harness
