Engine Model

Cat® C13B

Rated Payload

26.5 ton (US)

Heaped (SAE 2:1)

19.6 yd³

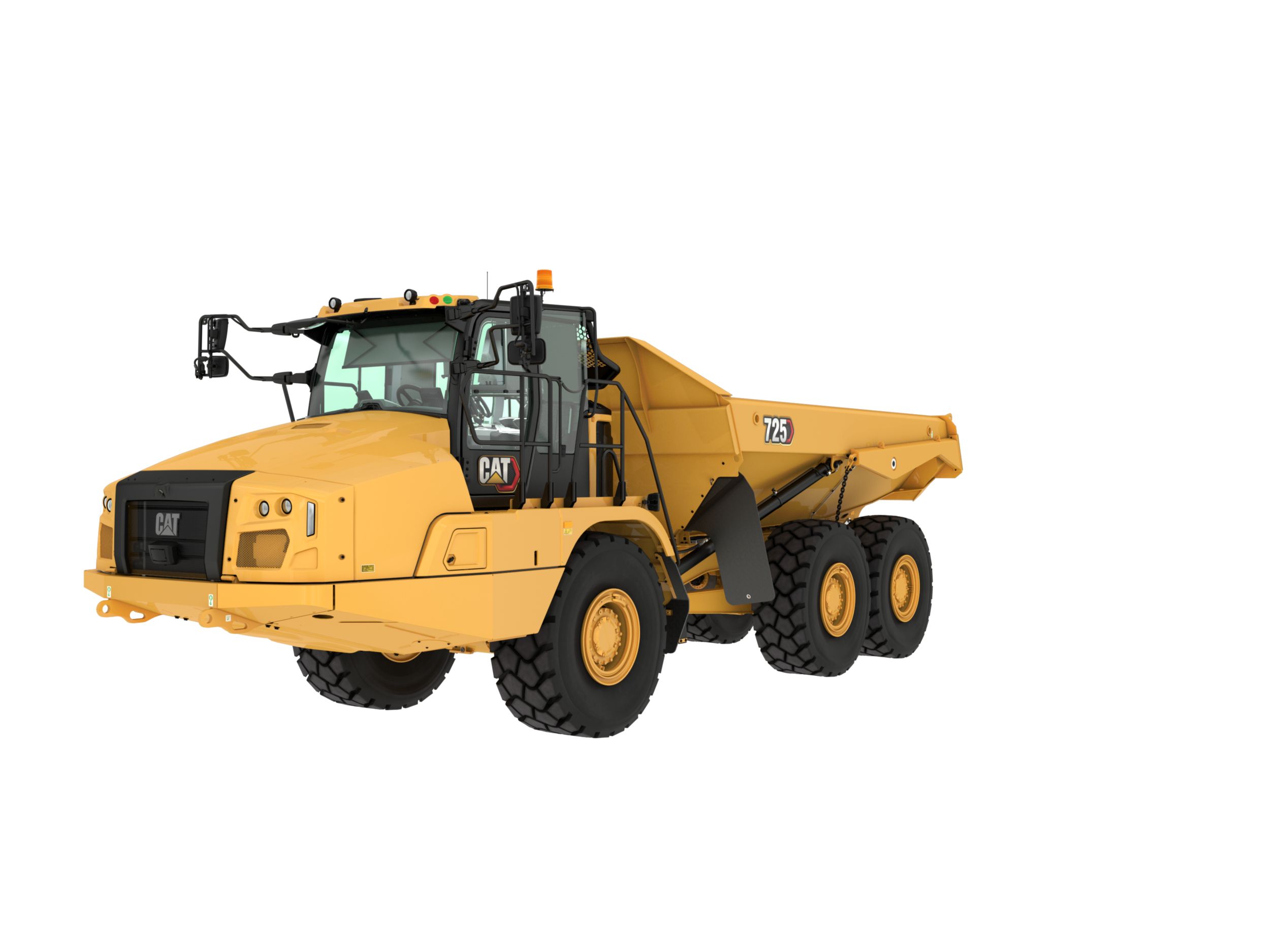

725 Articulated Truck

ABOUT THE 725 ARTICULATED

Haul more, dump more with the Cat® 725 articulated truck. Get more done with less effort. Automated technology features simplify operation, while its efficient power-to-weight ratio cuts fuel costs—so you move more material for less.

The 725 ARTICULATED model is not yet in your cart.

Click on the add to cart button to build an equipment list.
Add the 725 ARTICULATED Model to the Cart
Request a Quote View rental options Apply for credit

TAKE THE 725 ARTICULATED FOR A SPIN

GET A PEEK INSIDE THE 725 ARTICULATED’S CABIN
GET A PEEK AT THE EXTERIOR OF THE 725 ARTICULATED

COMPARE THE 725 ARTICULATED TO OTHER Articulated-trucks

Engine Model
Cat® C13B
Gross Power (SAE J1995)
352hp
Net Power (SAE J1349)
345hp
Engine Power (ISO 14396)
347hp
Bore
5.12in
Stroke
6.18in
Displacement
763in³
Note (1)
Advertised power is tested at 1,700 rpm.
Note (2)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)
Net power when the fan is at maximum speed is 257 kW (345 hp) per the SAE reference conditions.
Note (5)
Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards.
Note (6)
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below
12500ft
Peak Engine Torque Gross (SAE J1995)
1431lbf·ft
Peak Engine Torque Net (SAE J1349)
1263lbf·ft
Peak Engine Torque Speed
1200r/min
Rated Payload
26.5ton (US)
Heaped (SAE 2:1)
19.6yd³
Struck
15yd³
Tailgate Heaped SAE 2:1
20.8yd³
Tailgate Struck
15.7yd³
Forward – 1
5mile/h
Forward – 2
9mile/h
Forward – 3
14mile/h
Forward – 4
21mile/h
Forward – 5
29mile/h
Forward – 6
34mile/h
Reverse – 1
6mile/h
Note (1)
The declared dynamic operator sound pressure level is 69±2 dB(A) when “ISO 6396:2008” is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling f
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Front Axle – Empty
31438lb
Center Axle – Empty
10009lb
Rear Axle – Empty
9502lb
Total – Empty
50949lb
Front Axle – Rated Load
5564lb
Center Axle – Rated Load
23673lb
Rear Axle – Rated Load
23673lb
Total – Rated Load
52911lb
Front Axle – Loaded
37002lb
Center Axle – Loaded
33682lb
Rear Axle – Loaded
33175lb
Total – Loaded
103860lb
Type
High strength Brinell HB450 wear resistant steel
Front Plate
0.28in
Base Plate
0.51in
Side Plates
0.43in
Scow
0.51in
Fuel Tank
105.7gal (US)
Cooling System
21.9gal (US)
Steering/Hoist Hydraulic System
32.5gal (US)
Engine Crankcase
11.4gal (US)
Transmission
12.4gal (US)
Output Transfer Gear Box
6.6gal (US)
Final Drive – Each
33gal (US)
DEF Tank
9gal (US)
Raise Time
12s
Lower Time
8s
Brakes
ISO 3450 – 2011
Cab – FOPS
ISO 3449 – 2005 Level II
Cab – ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2019
Turning Dimensions – Steer Angle – Left/Right
45°
Turning Dimensions – SAE Turning Radius
294in
Turning Dimensions – Clearance Radius
318in
Turning Dimensions – Inside Radius
153in
Turning Dimensions – Aisle Width
210in
Note
Dimensions are for machines equipped with 23.5R25 tires.
Lock to Lock
4.75 seconds @ 60 rpm
Hydraulic Excavators: 350/352 – Passes
4-5
Hydraulic Excavators: 336 – Passes
5-6
Wheel Loaders: 972/972 XE – Passes
3-4
Wheel Loaders: 966/966 XE – Passes
4
Wheel Loader: 962 – Passes
4-5
Wheel Loader: 950 – Passes
5
Note
An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased pr
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Operator Environment
    • Seats:
      – Operator: fully adjustable, air suspension
      – Trainer: padded with lap belt
    • Windshield wiper and washer, two speed, intermittent (front)
    • Touchscreen display incorporating the rearview camera video feed
    • Retractable belt: Operator seat and second seat
    • Sun visor
    • Mirrors: exterior
    • Adjustable air vents
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Hoist control
      – Hydraulic system
      – Charging system
      – Retarder
      – Transmission fault
      – Traction control system
      – Check engine lamp
    • Tilt and telescopic steering wheel
    • Combined gear selection and hoist control lever
    • Glass windows:
      – Front, laminated and tinted
      – Sides and rear, toughened and tinted
    • Air conditioning
    • Secondary steering – electro hydraulic
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Review Operation and Maintenance Manual (OMM)
      – Primary steering failure warning
      – Seat belt warning
      – Secondary steering failure warning
      – Diesel Particulate Filter (DPF) regeneration filter
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Heater and defroster with four-speed fan
    • Storage:
      – Cup holder
      – Flask receptacle
      – Under seat storage
      – Door pocket
      – Behind operator seat storage
      – Coat hook
    • Windows opening both sides, tinted
  • Technology
    • Cat® Detect with Stability Assist
    • Product Link Cellular PLE643
  • Electrical And Lighting
    • Electrical system: 24-volt, 5A 24- to 12-volt converter
    • Main disconnect switch
    • Batteries (two) maintenance free
    • Horn
    • Remote starting receptacle (cables not included)
    • Lighting systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light/cab access light
      – Two stop/tail lights
      – Front and rear direction indicators
  • Powertrain
    • Three axle, six-wheel drive
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Retarder: engine compression brake
    • Cat C13B engine
    • Clean Emission Module (CEM) and exhaust aftertreatment package
    • Auto shift six-speed forward and single speed reverse transmission
    • Differentials: standard with automatic clutched inter- and cross-axle differential locks
  • Safety
    • Reverse alarm
    • Rearview camera
    • Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab
  • Guards
    • Radiator
    • Crankcase
    • Rear window
    • Front dump body spill guard, integral part of fabricated body
  • Other Standard Equipment
    • S·O·S sampling valves
    • Mud flaps: wheel arch and body mounted with transportation tiebacks
    • Vandalism protection: lockable caps
    • Tires, six 23.5R25
    • Sound suppression (standard in some countries*)
      –*Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzertland, Türkiye and UK.
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Operator Environment
    • Infrared glass – high ambient cab
    • Mirrors, heated motorized
    • Radio, Bluetooth® stereo system
    • Seat, heated/cooled
    • Seat belt, four-point
    • Window blinds
    • Windshield wiper and washer, single-speed (rear)
  • Technology
    • Operator Coaching
    • Cat® Payload monitoring system
    • Product Link Dual PLE683
  • Electrical And Lighting
    • Cold weather start attachment (2 additional batteries)
    • Engine block heater
    • Ether start
    • Flashing LED beacon
    • Roof mounted LED work lights
  • Optional Equipment
    • Auto lube installation for automatic greasing of bearings
    • Fuel additive – anti-waxing
    • Bare chassis (no body) standard wheel base
    • Cold weather coolant –51° C (–60° F)
    • Scissor tailgate
    • Wheel chocks
    • Fast fuel fill
    • Body liners
    • Exhaust heated body

Cat® Detect with Rear Camera

Cat® Detect with Surround Cameras

Cat® Seat Belt Reminder

Cat® Detect with Smart Camera
