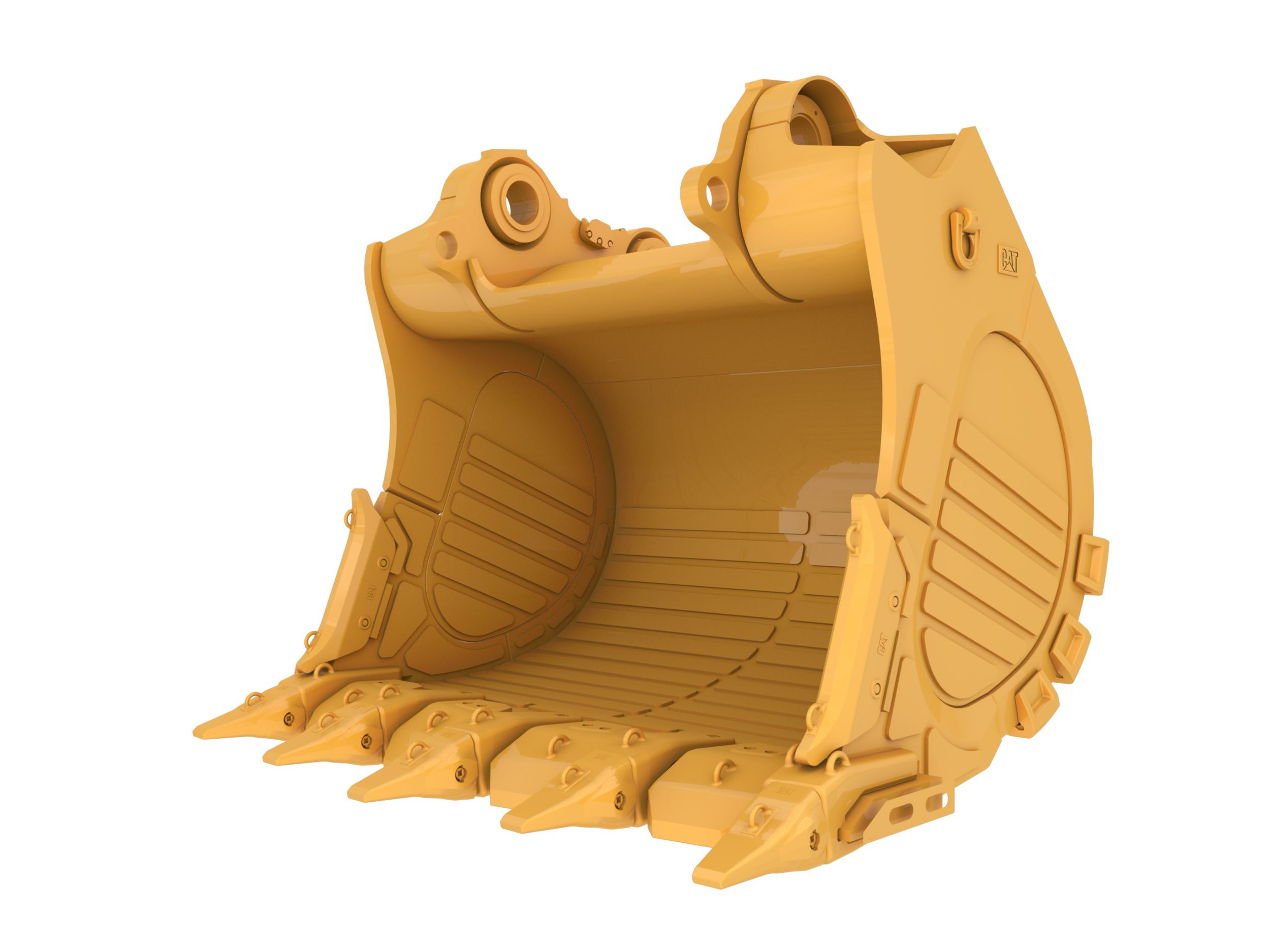

12m³ (15.7yd³) Heavy Rock and Iron Ore bucket for the 6030 Hydraulic Mining Shovel

Material Density
4382lb/yd³
Wear Package
Extreme Duty – Abrasion
Ground Engaging Tool (GET) System
Cat C85
Machine Model
6030
Capacity
15.7yd³
Weight
15635lb
Outer Width
138.6in
Inner Width
118.1in
