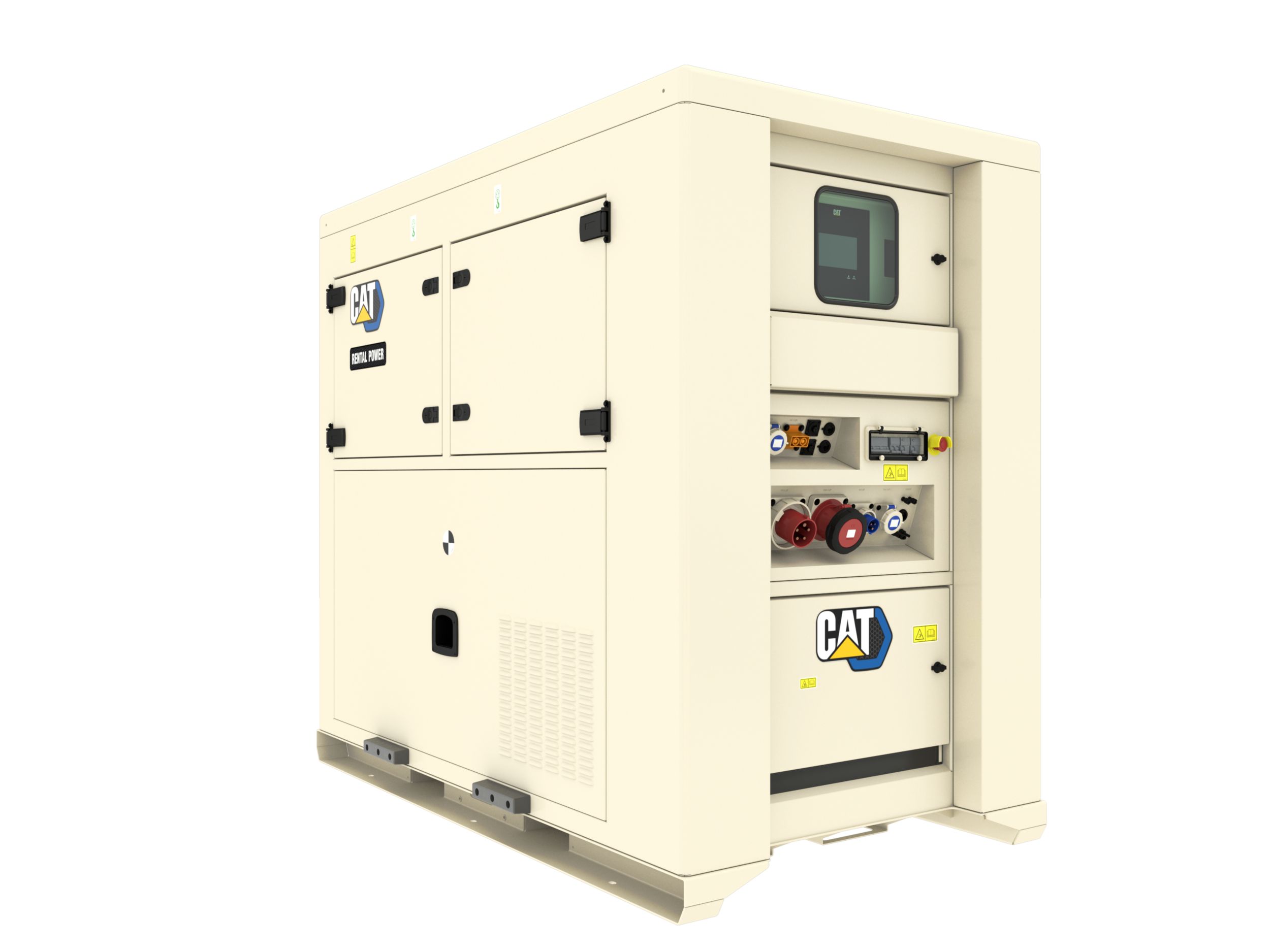

Exterior View

XES120 (50 Hz)

Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.

Nominal Power
72 kW (90 kVA)
Energy Storage
127.9 kWh
Application
Energy Storage
Enclosure Rating
IP55
Operating Temperature
0° to 50°C (32°to 122°F)
Storage Temperature
-10° to 50°C (14°to 122°F)
  • Xes120 (50 Hz) Energy Storage System
    • 120 kWh Li Ion batteries
    • 72 kW (90 kVA) 400/230 V 50 Hz Inverter
    • Energy Management System with Color HMI Touchscreen
    • Busbar connectors
    • CEE-Form Receptacles
    • Maintence charge input
    • Remote monitoring hardware
    • Variable speed forced air cooling
    • Weather-proof enclosure
    • Lifting Eye
    • Fork Pockets

Coming Soon
