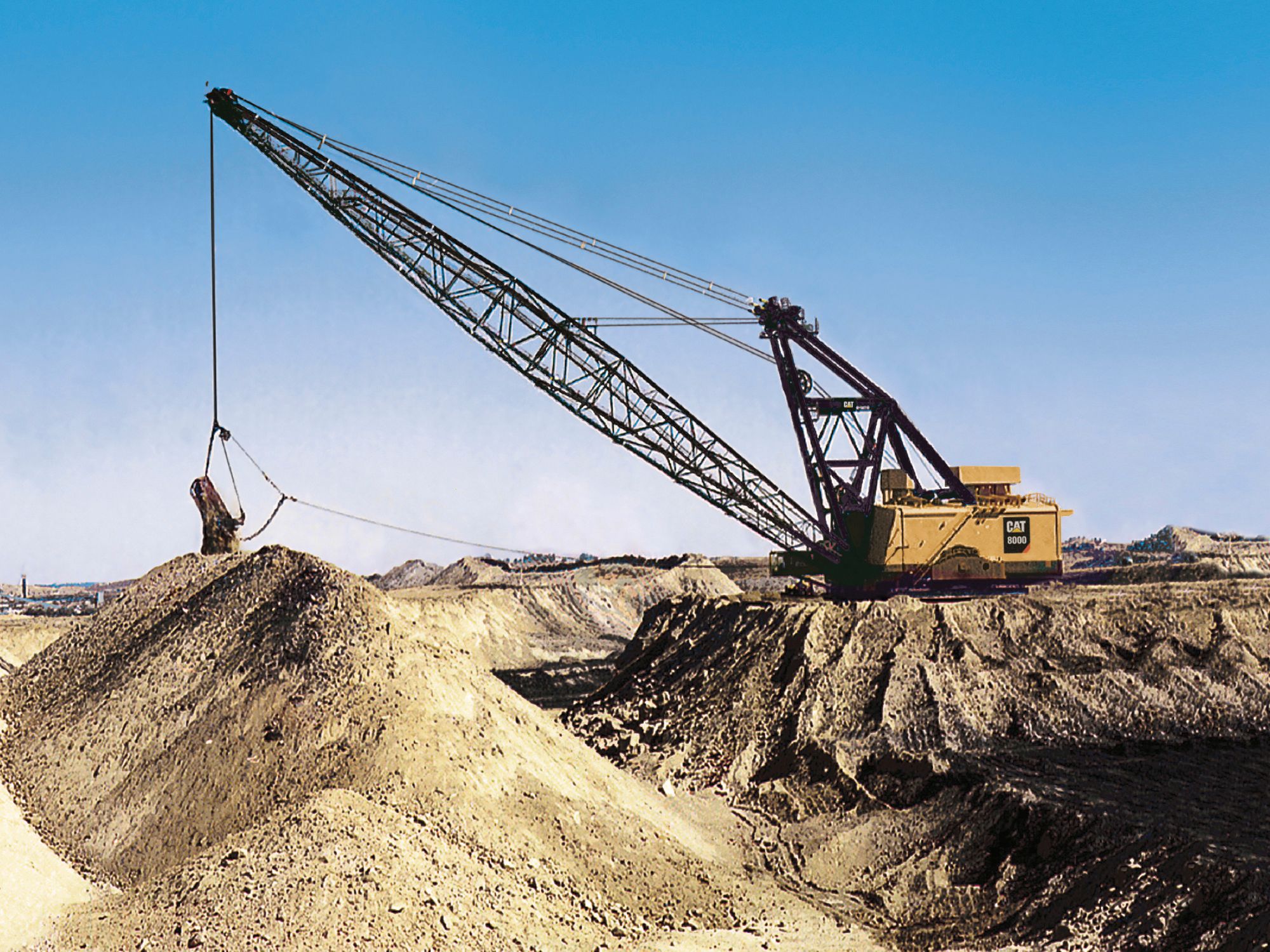

Specifications
- Rated Suspended Load
-
71 000 to 102 100 kg (156,500 to 225,000 lb)
- Bucket Capability
-
24 to 34 m3 (31 to 44 yd3)
- Boom Length
-
75 to 101 m (246 to 331 ft)
- Working Weight - Approximate
-
1 770 000 to 1 988 000 kg (3,902,000 to 4,382,000 lb)
Dimensions (Approximate) – 15.6 m (51 ft) Base
- Boom Foot Height
-
13.45ft
- Boom Foot Radius
-
20.34ft
- Clearance Height
-
7.55ft
- Clearance Radius
-
55.45ft
- Point Sheave Pitch Diameter
-
90.0in
Revolving Frame – 15.24 m (50 ft) Base
- Girder Depth
-
6.56ft
- Upper Machinery Frame (width × length)
-
13.1 m × 22.9 m (43 ft × 75 ft)
Weights
- Boom Length: 76.2 m (250 ft) – Ballast Weight, furnished by customer
-
660000.0lb
- Boom Length: 76.2 m (250 ft) – Net Weight, domestic, approximate with bucket
-
3200000.0lb
- Boom Length: 76.2 m (250 ft) – Working Weight, approximate with bucket
-
3860000.0lb
- Boom Length: 83.8 m (275 ft) – Ballast Weight, furnished by customer
-
700000.0lb
- Boom Length: 83.8 m (275 ft) – Net Weight, domestic, approximate with bucket
-
3250000.0lb
- Boom Length: 83.8 m (275 ft) – Working Weight, approximate with bucket
-
3950000.0lb
- Boom Length: 96 m (315 ft) – Ballast Weight, furnished by customer
-
850000.0lb
- Boom Length: 96 m (315 ft) – Net Weight, domestic, approximate with bucket
-
3500000.0lb
- Boom Length: 96 m (315 ft) – Working Weight, approximate with bucket
-
4350000.0lb
- Note
-
Ballast requirements and net weight of machine varies with boom length and rated suspended load.
- Note
-
Shipping weight subject to ±5% variance.
Dimensions (Approximate) – 15.24 m (50 ft) Base
- Boom Foot Height
-
13.45ft
- Boom Foot Radius
-
20.34ft
- Clearance Height
-
5.74ft
- Clearance Radius
-
53.48ft
- Point Sheave Pitch Diameter
-
90.0in
Walking Mounting – 15.6 m (51 ft) Base
- Combined Bearing Area
-
990.0ft2
- Length of Step (approximate)
-
7.0ft
- Overall Width Over Shoes
-
71.0ft
- Shoe Width and Length
-
2.7 m × 16.8 m (9 ft × 55 ft)
Electrical – 15.6 m (51 ft) Base
- Drag Motors
-
2 × 1230 kW (2 × 1,650 hp)
- Hoist Motors
-
2 × 1230 kW (2 × 1,650 hp)
- Swing Motors
-
4 × 373 kW (4 × 500 hp)
- Walking Motors
-
Common shaft clutched off one drag motor
Base – 15.6 m (51 ft)
- Bearing Area
-
2043.0ft2
- Circle Rail Diameter
-
50.0ft
- Outside Diameter
-
51.0ft
- Rollers (average diameter)
-
10.25in
- Swing Gear (pitch diameter)
-
42.5ft
Walking Mounting – 15.24 m (50 ft) Base
- Combined Bearing Area
-
864.0ft2
- Length of Step (approximate)
-
7.0ft
- Overall Width Over Shoes
-
71.0ft
- Shoe Width and Length
-
2.7 m × 14.6 m (9 ft × 48 ft)
Electrical – 15.24 m (50 ft) Base
- Drag Motors
-
2 × 1230 kW (2 × 1,650 hp)
- Hoist Motors
-
2 × 1230 kW (2 × 1,650 hp)
- Swing Motors
-
2 × 477 kW (2 × 640 hp)
- Walking Motors
-
Common shaft clutched off one drag motor
Revolving Frame – 15.6 m (51 ft) Base
- Girder Depth
-
6.56ft
- Upper Machinery Frame (width × length)
-
13.1 m × 23.39 m (43 ft × 76 ft 9 in)
Base – 15.24 m (50 ft)
- Bearing Area
-
1963.0ft2
- Circle Rail Diameter
-
50.0ft
- Outside Diameter
-
50.0ft
- Rollers (average diameter)
-
10.0in
- Swing Gear (pitch diameter)
-
42.5ft
Dimensions/Working Ranges
- Bucket Capabilities
-
46-61 m3 (60-80 yd3)
- Boom Lengths
-
75 to 101 m (246 to 331 ft)
- Rated Suspended Load
-
71 000 to 102 100 kg (156,500 to 225,000 lb)
Dimensions - Working Ranges
- Boom Lengths
-
75 to 101 m (246 to 331 ft)
- Bucket Capabilities
-
46-61 m3 (60-80 yd3)
- Rated Suspended Load
-
71 000 to 102 100 kg (156,500 to 225,000 lb)
