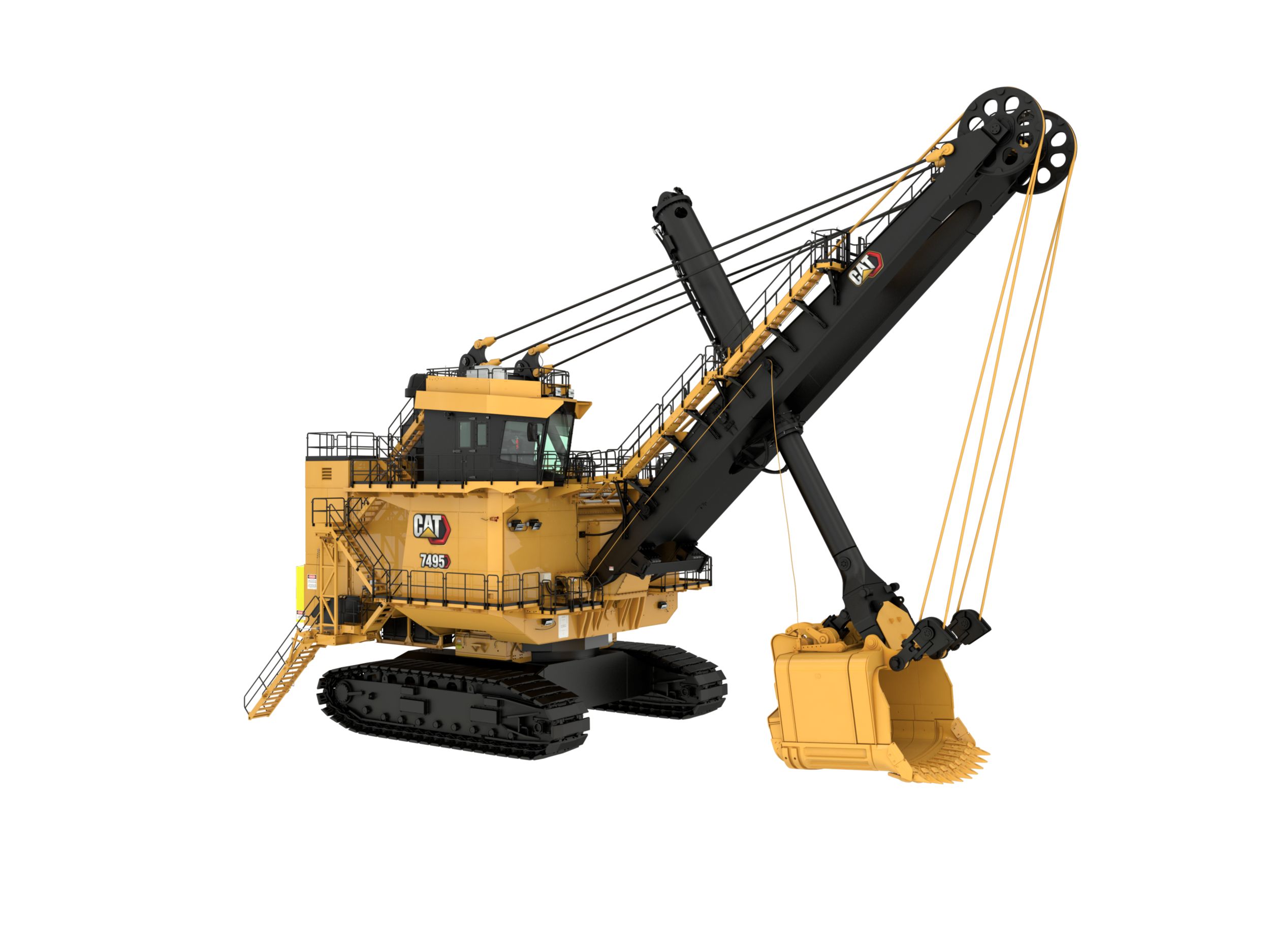

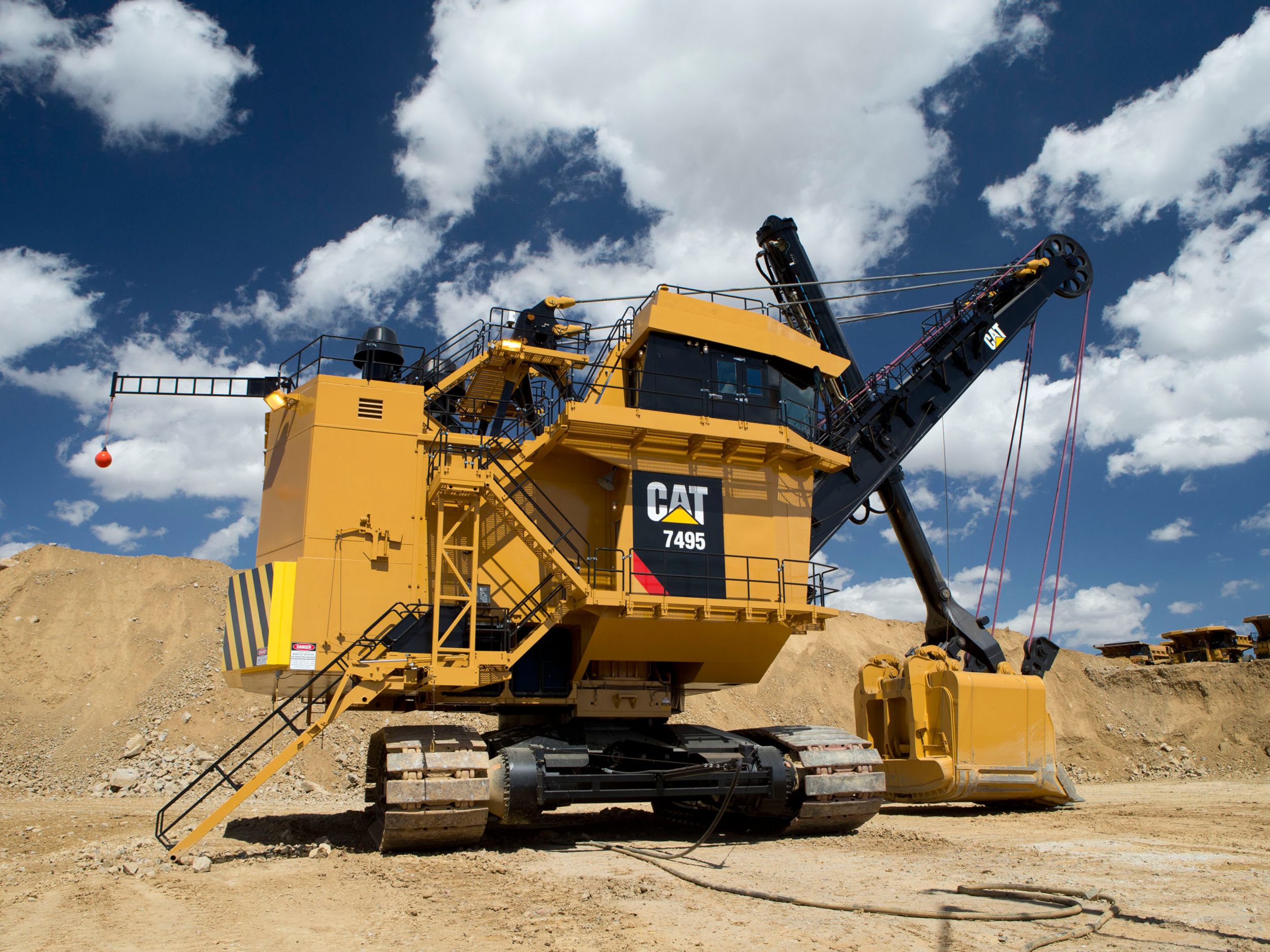

7495 Electric Rope Shovel

Note
Dependent on application and material density
Length of boom
67.0 ft
Overall length of dipper handle
47.0 ft
General purpose dipper - 56 m3 (73 yd3)
177700.0 lb

Specs

Dimensions

Note
Dependent on application and material density
Length of boom
67.0ft
Overall length of dipper handle
47.0ft
Dipper Payload
120t
Dipper Capacity
30.6-62.7 m3 (40-82 yd3)
Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified)
120t
Note
Dependent on application and material density

Weights

General purpose dipper - 56 m3 (73 yd3)
177700.0lb
Note
These weights will vary slightly depending upon dipper and optional equipment selection
Note
All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) treads
Working Weight - With Dipper and Standard Links
3066000lb
Ballast - Furnished By Customer
667150lb
Note (1)
These weights will vary slightly depending upon dipper and optional equipment selection
Note (2)
All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers.

Electrical

Power Requirements – 50 Hz
6,000V, 6,600V, 7,200V, 11,000V
Power Requirements – 60 Hz
7,200V, 13,800V
Main Electrical Systems - Trail cable (furnished by customer)
SHD-3-#1/0 at 8000V
Main Electrical Systems - Transformer, auxiliary
350 kVA, 7200V primary
Power Requirements – Average power demand
945-1322 kW
Trail cable (supplied by customer)
SHD-3-#1/0 at 8000V
Transformer, auxiliary
350 kVA, 7200V primary
Power Requirements - Voltage
3 phase, 50/60 Hz, 7,200V
Power Requirements - 50 Hz
6,000V, 6,600V, 7,200V, 11,000V
Power Requirements - 60 Hz
7,200V, 13,800V
Power Requirements - Average Power Demand
945-1322 kW
Power Requirements - Peak power
3778 kW
Power Requirements - Note
Other voltage options available to suit customer requirements
System Voltage - Nominal
50/60 Hz, 7,200V
Drive
IGBT Acutrol drive system

Front End

Type
One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Rope Data: Hoist – No.
2
Rope Data: Boom suspension – No.
4
Rope Data: Dipper trip – No.
1
Rope Data: Hoist – Diameter
2.75in
Rope Data: Dipper trip – Diameter
0.75in
Rope Data: Note
High impact ropes available as an option
Crowd
HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.
Crowd
(Optional) Rope Crowd, the crowd machinery is located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Crowd - Hydraulic cylinder bore diameter (nominal)
14.0in
Crowd - Hydraulic cylinder rod diameter (nominal)
10.0in
Rope Data - Boom susp. - Construction
struct. strand
Rope Data - Boom susp. - Diameter
3.25in
Rope Data - Boom susp. - No.
4
Rope Data - Boom susp. - Type
equalized
Rope Data - Dipper trip - Construction
7 x 25
Rope Data - Dipper trip - Diameter
0.75in
Rope Data - Dipper trip - No.
1
Rope Data - Dipper trip - Type
single
Rope Data - Hoist - Construction
8 x 37
Rope Data - Hoist - Diameter
2.75in
Type
One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Crowd (1)
HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.
Crowd (2)
(Optional) Rope Crowd, the crowd machinery is located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Rope Data - Boom Suspension - Diameter
3.25in
Rope Data - Boom Suspension - No.
4
Rope Data - Dipper Trip - Diameter
0.75in
Rope Data - Dipper Trip - No.
1
Rope Data - Hoist - Diameter
2.75in
Rope Data - Hoist - No.
2
Rope Data - Note
High impact ropes available as an option

Main Structures

Crawler Dimensions – Overall width 200.7 cm (79 in) treads, standard
36ft
Crawler Dimensions – Overall width 259.1 cm (102 in) treads
38ft
Ground Bearing Pressure – Total effective bearing area 259.1 cm (102 in) treads
46.6 m2 (298 kPa); 501.7 ft2 (43 psi)
Ground Bearing Pressure – Note
Ground bearing pressure is dependent upon many factors
Planetary Propel
Dual-motor independent drive
Hoist
A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Crawler Mounting - Total effective bearing area (259.1 cm treads)
46.6 m2 (289 kPa); 501.7 ft2 (50 psi)
Hoist
A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Planetary Propel
Dual-motor independent drive
Revolving Frame (Center Section) - Welded, impact-resistant steel: Length
27.49ft
Revolving Frame (Center Section) - Welded, impact-resistant steel: Width
12.07ft
Swing
Two planetary gearboxes, each driven by a vertically mounted motor, are mounted on either side of the revolving frame.
Swing (cont'd)
Dual-output pinion shafts from each gearbox engage the swing rack.
Turntable - Forged rim, alloy steel swing rack pitch diameter
17.26ft
Turntable - Number of tapered rollers
50
Turntable - Tapered rollers diameter
10.75in
Turntable - Tapered, forged alloy steel roller rails diameter
14.83ft
Turntable - Teeth external cut (face)
9.5in
Upper Works Overall Width - Including Standard Walkways
41.9ft
Ground Bearing Pressure - Note
Ground bearing pressure is dependent upon many factors
Hoist
A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Planetary Propel
Dual-motor independent drive
Crawler Dimensions - Overall Width 200.7 cm (79 in) Treads, Standard
36ft
Crawler Dimensions - Overall Width 259.1 cm (102 in) Treads
38ft
Ground Bearing Pressure - Total Effective Bearing Area (200.7 cm/79 in) Treads - Standard
36 m2 (382 kPa); 386 ft2 (55 psi)
Ground Bearing Pressure - Total Effective Bearing Area (259.1 cm/102 in) Treads
46.6 m2 (298 kPa); 501.7 ft2 (43 psi)
Swing
Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.

Dimensions/Working Ranges

Maximum dumping radius
71.0ft

Dimensions (Approximate) – Optimal Working Ranges*

Cutting radius (maximum)
80.0ft
Radius of level floor
56.1ft
Revolving frame tail swing radius
30.5ft
Note
Optimal working ranges based on loading a Cat 795F AC truck.
Note
*All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) treads.

Dimensions - Optimal Working Ranges

Operator’s eye level
34.81ft
Overall width
43.0ft

Lube System

Components (1)
Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room
Type
Automatic, single-line system for open gear lubricant and grease
Components
External FastFil from lower level
Components (2)
External FastFil from lower level

Dimensions - Working Ranges

Dipper Capacities
30.6-62.7 m3 (40-82 yd3)
Dipper Payload
120ton (US)
Maximum Dumping Height
28.9ft
Operating Weight
3066000lb

Dimensions (Approximate) - Optimal Working Ranges*

Dumping Height - With Clearance to Open Dipper Door
28.9ft
Cutting Height - Maximum
53.5ft
Cutting Radius - Maximum
80ft
Radius of Level Floor
56.1ft
Revolving Frame Tail Swing Radius
30.5ft
Note (1)
Optimal working ranges based on loading a Cat 795F AC truck.
Note (2)
*All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers.
