Engine Output – SAE J1995

824 hp

Bucket Payload

16.1 ton (US)

Operating Weight

154.3 ton (US)

6015 Hydraulic Shovel

ABOUT THE 6015

The next generation Cat® 6015 Hydraulic Shovel lets you move more material at a low cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. With high tool carrying capacity, increased durability and the most powerful engine in its class, the Cat 6015 generates higher productivity and fuel efficiency than other shovels. And it’s offered with more and better options that let you match your machine to your operation — from access and cold weather packages to multiple stick and track pad options. In addition, a large range of buckets is available, giving you optimum payload and machine efficiency for your operation. And the 6015’s high tool carrying capacity gives you the ability to employ large buckets and move more in fewer cycles.

The 6015 model is not yet in your cart.
Click on the add to cart button to build an equipment list.
Add the 6015 Model to the Cart

TAKE THE 6015 FOR A SPIN

GET A PEEK INSIDE THE 6015’S CABIN
GET A PEEK AT THE EXTERIOR OF THE 6015

COMPARE THE 6015 TO OTHER Hydraulic-mining-shovels

Engine Output – SAE J1995
824hp
Bucket Payload
16.1ton (US)
Operating Weight
154.3ton (US)
Note
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
Engine Model
Cat® C27
Gross Power – SAE J1995
824hp
Net Power – SAE J1349
812hp
Number of Cylinders
12
Bore
5.4in
Stroke
6in
Displacement
1648in³
Engine Model
Cat® C27
Gross Power – SAE J1995
839hp
Net Power – SAE J1349
829hp
Number of Cylinders
12
Bore
5.4in
Stroke
6in
Displacement
1648in³
Aspiration
Turbocharged and air-to-air aftercooled
Operating Weight
154ton (US)
Ground Pressure
23.6psi
Note
Operating weight includes: 700 mm (28 in) track pads, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants
Operating Weight
308000lb
Standard
28in
Wide
35in
Extra Wide
39in
Number of Shoes – Each Side
46
Number of Track Rollers – Each Side
9
Number of Carrier Rollers – Each Side
3
Track Pads
Heavy Duty (HD) with double grouser
Travel Speed – Two Stages – 1st Stage – Maximum
1.6mile/h
Travel Speed – Two Stages – 2nd Stage – Maximum
2.3mile/h
Maximum Drawbar Pull – Forward
192886lbf
Maximum Drawbar Pull – Reverse
220987lbf
Gradeability – Travel Drives
Approximately 42%
Hydraulic Track Tensioning
With accumulator
Maximum Drawbar Pull
179847lbf
Fuel Tank
449gal (US)
Cooling System
44gal (US)
Engine Oil
23gal (US)
Swing Drive
2.4gal (US)
Hydraulic System – Including Tank
463gal (US)
Hydraulic Tank
253gal (US)
Grease Tank
57gal (US)
System Voltage
24 V
Batteries
4 × 200 Ah (12 V each)
Alternator Rating
150 A (24 V) in total
Components (1)
Emergency stop switches: one in cab, three in engine module, one pull rope accessible from ground level
Components (2)
Four maintenance free batteries
Components (3)
Lockable battery isolation switch
Components (5)

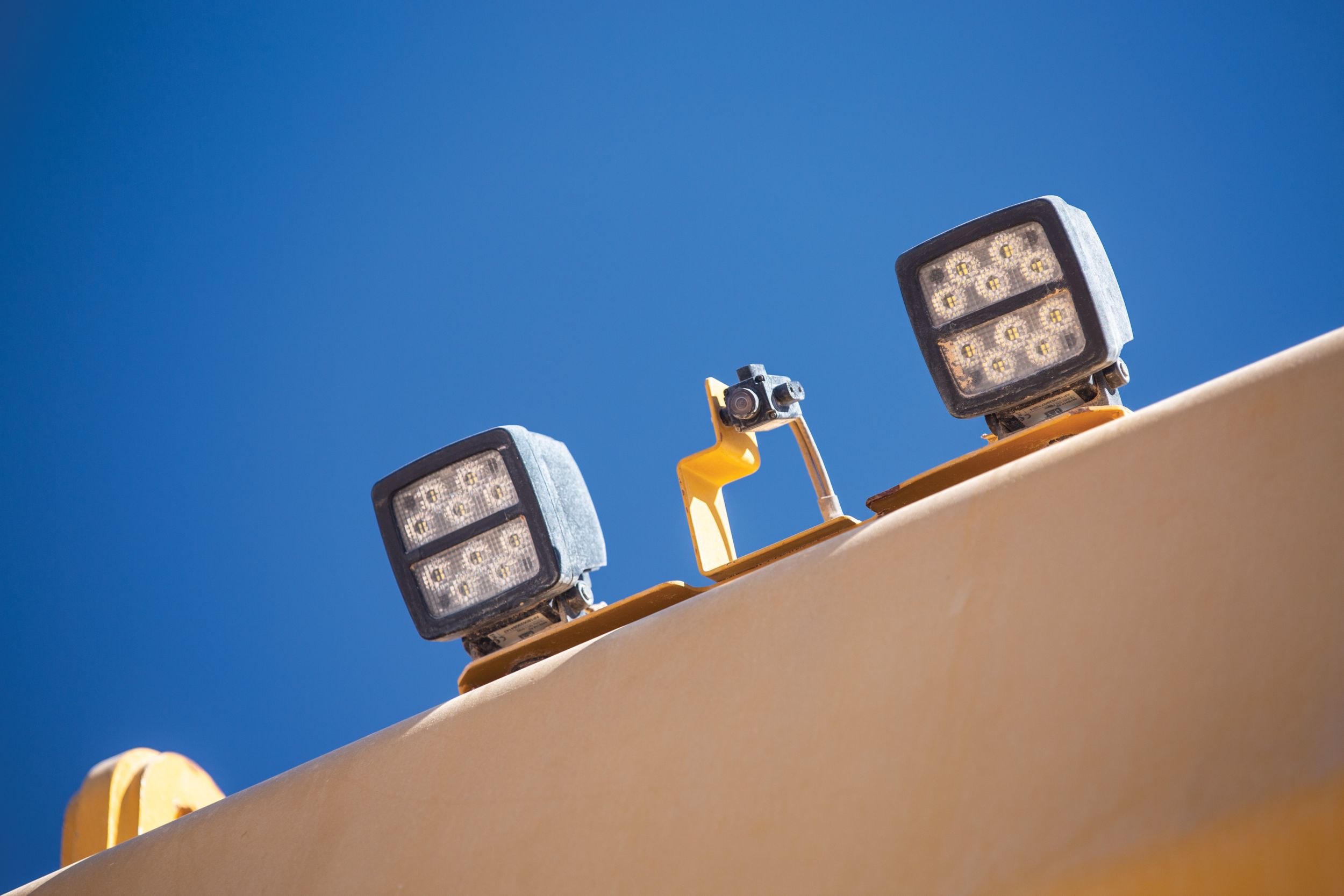

14 LED high-brightness working lights
Components (4)
5 LED service lights
Components (6)
2 electric horns
Components (7)
Two (2) lights for rear end
Components (9)
One (1) beacon light on cabin roof
Components (8)
One (1) light for machine deck/service
Main Pumps
3 × variable swash plate pumps
Main Pumps – Maximum Total Oil Flow
407gpm
Main Pumps – Maximum Pressure – Attachment
4641psi
Pilot Pump – Maximum Flow, Pilot
40.4gpm
Pilot Pump
1 × gear pump
Pilot Pump – Maximum Pressure, Pilot
1378psi
Main Pumps – Maximum Pressure – Travel
4641psi
Engine Fan Pump – Maximum Flow, Engine Fan
53.1gpm
Engine Fan Pump – Maximum Pressure, Engine Fan
3191psi
Swing Pump
1 × variable swash plate pump
Engine Fan Pump
1 × variable swash plate pump
Swing Pump – Maximum Flow – Swing
127gpm
Hydraulic Fan Pump – Maximum Pressure, Hydraulic Fan
1958psi
Hydraulic Fan Pump – Maximum Flow, Hydraulic Fan
22.7gpm
Hydraulic Fan Pump
1 × variable swash plate pump
Swing Pump – Maximum Pressure – Swing
5294psi
Hydraulic Oil Cooling – Maximum Flow
284gpm
Hydraulic Oil Cooling – Diameter of Fan
46in
Filters (1)
Full-flow high-pressure filters (200 μm) for main pumps
Filters (2)
Full-flow filters (20 μm), return circuit
Filters (3)
Pressure filters (16 μm), servo circuit
Filters (4)
Full-flow filters (6 μm), cooling return circuit
Filters (5)
Swing charge filter (15 μm)
Filters (6)
Pump case return screens (125 μm)
Swing Drive
Two (2) compact planetary transmissions with axial piston motors
Parking Brake
Wet multiple disc brake, spring-loaded/hydraulically released
Maximum Swing Speed
4.9r/min
Swing Ring
Triple-race roller bearing with sealed internal greasing
Features (1)
Closed-loop with torque control
Features (2)
Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
Features (3)
All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Emissions
U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1
Feature
Accessible from ground level for diesel fuel and grease
Equipped With (1)
One pull rope emergency stop
Equipped With (2)
Quick couplings for: diesel fuel and grease
Travel Speed – Two Stages – 1st Stage – Maximum
1.6mile/h
Travel Speed – Two Stages – 2nd Stage – Maximum
2.3mile/h
Maximum Tractive Force
197157lbf
Maximum Drawbar Pull – Reverse
220987lbf
Gradeability – Travel Drives
38°/78% (SAE J1309)
Number of Shoes – Each Side
46
Hydraulic Track Tensioning
With accumulator
Number of Track Rollers – Each Side
9
Number of Carrier Rollers – Each Side
3
Components (1)
Heavy Duty (HD) with double-grouser track pads
Components (2)
Chain links connected by hardened pins and bushings
Components (3)
Postive Pin Retention (PPR2) sealed and greased track design
Components (4)
Hardened running surfaces of sprockets, idlers, rollers and track chain links
Components (5)
Fully hydraulic self-adjusting track tensioning system with accumulator
Components (6)
Automatic hydraulic retarder valve
Components (7)
Acoustic travel alarm (forward and reverse)
Components (1)
Pressurized cab with positive filtration
Components (2)
Heated cab mirror
Components (3)
Sliding upper door window
Components (4)
Glass-breaking safety hammer
Components (5)
Removeable lower windshield within cab storage
Components (6)
Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM
Components (7)
Beverage holder
Components (8)
Literature holder
Components (9)
AM/FM radio
Components (10)
FM/AM radio with MP3 auxiliary port
Components (11)
Two stereo speakers
Components (12)
Storage shelf suitable for lunch or toolbox
Components (13)
Color LCD display with service parameters, event and diagnostic annunciation, preventative maintenance, trip total, lifetime totals. Gauges for engine speed, engine oil pressue, and hydraulic oil temperature
Components (14)
Head and arm rests
Components (15)
Independently adjustable seat consoles with integrated joysticks
Components (16)
Neutral lever (lock out) for all controls
Components (17)
Travel control pedals with removable hand levers
Components (18)
Two power outlets, 10 amp (total)
Components (19)
Laminated front upper window and tempered glass other windows
Capacity – Grease Barrel
18gal (US)
Type (1)
Central bank lubrication system
Type (2)
Grease is automatically applied to all attachment pivot points, slew bearing, and bucket linkage
Type (3)
Standard grease reel on machine for bucket linkage
Type (4)
Grease refill service point accessible from ground
Type (1)
Boom and stick torsion-resistant with welded box design
Type (2)
High-tensile steel with solid steel castings at pivot areas
Type (3)
Boom and stick stress-relieved after welding
Type (4)
Float valve for boom down function
Buckets Equipped With
– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
Maximum Digging Depth
26.3ft
Maximum Digging Reach
45.6ft
Maximum Digging Height
41.9ft
Maximum Dump Height
27.9ft
Bucket Digging Force – SAE
112600lbf
Bucket Digging Force – ISO
120947lbf
Stick Digging Force – ISO
104761lbf
Stick Digging Force – SAE
98800lbf
Capacity 1:1
10.6yd³
Total Width
8.8ft
Number of Teeth
5
Tooth System
Cat C70 or M75
Weight – Including Standard Wear Package
18521lb
Maximum Material Density – Loose
3030lb/yd³
  • Cat Powertrain
    • Cat C27 Engine
    • Aftertreatment system (used in Tier 4 Final only): – Diesel Oxidation Catalyst (DOC) – NOx Reduction System (NRS) – Non-Diesel Exhaust Fluid (DEF) solution
    • Air-to-Air After Cooling (ATAAC)
    • Turbocharger
    • Hydraulically driven radiator fan
    • Electronically controlled fan speed
    • Micro processed engine management
    • Heavy-duty air filters
    • Two stage fuel filtration with water separator
    • Starting aid — automatic ether
    • Exhaust system heat shields
    • Dual 24 V electric starters
    • Automatic engine idle shut down
    • Automatic fuel priming
  • Hydraulics
    • Power Management System with integrated controls: – Flow-on-demand management of implement/travel (3) and swing (1) pumps – Load Enhanced Anticipatory Control (LEAC) to prevent engine lug – Proportional Priority Pressure Compensating (PPPC) technology prioritizes pump flow and pressure to individual functions (boom, stick, and bucket) during simultaneous operations
    • Pressure cut-off for main pumps
    • Cat Hydraulic Hose assemblies
    • Cooling of pump transmission gear oil
    • Closed loop swing circuit
    • Parking brake enabled switch
    • Anti drift swing logic
    • Pressure testing points
    • Full-flow high-pressure filters (200 μm), main pumps
    • Full-flow filters (20 μm), return circuit
    • Full-flow filters (6 μm), cooling return circuit
    • Pressure filters (6 μm), servo circuit
    • Swing charge filters (15 μm)
    • Pump case return screens (125 μm)
    • Boom float valves and regeneration circuit
  • Electrical System
    • Four maintenance-free batteries
    • Lockable battery isolator switch
    • 14 LED high-brightness working flood lights
    • 5 LED service lights
    • Two electric horns
  • Undercarriage
    • Positive Pin Retention (PPR2) sealed and greased track design
    • Heavy Duty (HD) tracks with cast double-grouser track pads
    • HD fixed axle rollers
    • HD fixed axle idlers
    • HD undercarriage protection: – Propel motor guard – Propel tube guards – Slew bearing lube line protection
    • Automatic hydraulic retarder valve
    • Acoustic travel alarm (forward and reverse)
    • Travel motor covers with service doors
    • Hardened running surfaces of sprockets, idlers, rollers and track chain links
    • Fully hydraulic self-adjusting track tensioning system with accumulator
  • Automatic Lubrication System
    • Grease container, 215 L (57 gal) capacity
    • Grease is automatically applied to all attachment pivot points, slew bearing and bucket linkage
  • Operator Environment
    • Single HVAC system
    • Pressurized cab with positive filtration
    • Travel control pedals with removable hand levers
    • Pneumatically cushioned and multi adjustable comfort seat with: – Seat heating – Lumbar support – Two-point safety belt – Head and arm rests
    • Sliding upper door window
    • Removable lower windshield within cab storage
    • Independently adjustable seat consoles with integrated joysticks
    • Neutral lever (lock out) for all controls
    • Two power outlets, 10 amp total
    • Electronic-Hydraulic Servo Control
    • Joystick controls alternate patterns (ISO/JIS, BHL, MHI, KOBE, or SCM)
    • FM/AM radio with MP3 auxiliary port
    • Sliding side window
    • Wiper/washer for lower and upper windshield
    • Roller blind at windshield
    • Color LCD 178 mm (7″) touchscreen display includes: – Service parameters for engine, hydraulics, and lubrication – Event and diagnostic annunciation – Gauges for engine speed, engine oil pressure, hydraulic oil temperature – Preventative maintenance – Trip total – Lifetime totals
    • Fixed access ladder
    • Heated cab mirror
    • Document Storage
  • Backhoe Attachment
    • Boom 7.6 m (24 ft 11 in)
    • Boom and stick thermally stress relieved after welding
    • Bucket wear package
  • Cat Technology
    • Cat Product Link Elite (Cellular)
    • Cat MineStar Solutions Ready
  • Service And Maintenance
    • Engine oil exchange interval — 500 hours
    • Hydraulic oil change interval – 5,000 hours
    • Scheduled Oil Sampling (S·O·SSM) ports
    • Pilot pressure monitoring via Electronic Technician (ET)
    • Centralized service area accessible from ground level for – Diesel fuel – Grease
    • Cat battery charging connector
    • Indicator light for grease
    • Standard lubricant
    • Jump start receptacle
  • Safety And Security
    • Emergency stop switches; one in cab, three in engine module, one pull rope accessible from ground level
    • Operator Protective Guard (Top Guard)
    • Laminated front upper window and tempered glass other windows
    • Glass-breaking safety hammer
  • Miscellaneous
    • ISO or ANSI decals
  • Cat Powertrain
    • Aluminum cooling package
    • Mesabi cooling package
  • Undercarriage
    • 700 mm (2 ft 4 in) wide track pads
    • 900 mm (3 ft 0 in) wide track pads
    • 1000 mm (3 ft 3 in) wide track pads
    • Belly plate for additional undercarriage protection
    • Track guards – full
    • Track guards – center
    • HD undercarriage protection: – Propel gearcase cover guard
  • Operator Environment
    • Powered 45° access stairway
    • Camera monitoring system VISION 360 (four cameras and additional color display)
  • Backhoe Attachment
    • Stick 3.4 m (11 ft 2 in)
    • Stick 4.1 m (13 ft 5 in)
    • Frontless base machine (no boom, no stick, no linkage)
  • Cat Technology
    • Cat Product Link Elite (Satellite)
    • Cat Product Link Elite (No radio)
  • Cold Weather
    • Cold Weather Package (120 V): Engine coolant heater – external power source required, 60 Hz
    • Cold Weather Package (240 V): Engine coolant heater – External power source required, 50 Hz
  • Service And Maintenance
    • Cat Bio HYDO Advanced hydraulic fluid
    • High temperature lubricant
    • Low temperature lubricant
  • Safety And Security
    • Operator Protective Guard (front guard)
  • Buckets
    • Additional buckets available, based on application, through your local Cat dealer

Coming Soon

Why Choose Louisiana Cat

We serve to build and power our community for a better future.

  • Provide a safe & meaningful work environment
  • Deliver innovative solutions through our expertise
  • Committed to the long-term growth and success of our employees and customers
  • Grow our business profitably

YOU MIGHT ALSO BE INTERESTED IN





STEP 2: MANAGE THE ITEMS IN YOUR EQUIPMENT LIST BEFORE SUBMITTING A REQUEST FOR QUOTE



Request for Quote

Clear All Items in Your Cart
Keep Shopping

Review items, Adjust Quantity, Remove Unwanted Equipment

  • Select an equipment listed in step 2 to get started

Promotional Items Associated with the Selected Equipment

The Great Payback: Low Financing Bundle Details:

The Great Payback: Bundle 1 Fuel Credit Bundle Details:

Small Excavators Big Savings Details:

Compact Equipment Offer:

Compact Equipment Offer:

One More Step

In the next and final step, which consists of the submission of your equipment list for a request for quote you'll be able to:
  • Add a specific comment for each item in your cart
  • Fill out the required information in the submission form
Submit to get a Quote

Fill out the Form

If you're not finished yet with your equipment list, you can keep adding more items. Click here to go back to the previous page.

Keep Shopping

Terms and Conditions

Small Excavators Big Savings: Terms and Conditions

* Offer valid from October 1, 2024 through December 31, 2024 on new 313 through 317 Cat® excavators sold by participating Cat dealers to customers in the USA or Canada. Purchase must occur during offer period. Offer subject to machine availability and credit approval by Cat Financial. Not all customers will qualify. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply.

The Great Payback: Terms and Conditions

*Offer valid from October 1, 2024 through December 31, 2024. Offer only available on select new Cat® machines listed in our Heavy Equipment Promotion page. Purchase must occur by December 31, 2024. Offer subject to machine availability. Offer is subject to credit approval by Caterpillar Financial Services Corporation for US customers, and Caterpillar Financial Services Limited for Canadian customers. Not all customers will qualify. The offered Cat Customer Value Agreement (CVA) includes 6 maintenance parts kits; S∙O∙SSM; and 36 month VisionLink® ConnectPro. The maintenance parts cover the first 3,000 hours^ (estimated 3 years) of machine utilization. Each kit contains one set of parts for regular planned maintenance under normal operating conditions. In some severe applications where maintenance parts need to be replaced more frequently, additional parts will be at customer’s expense. Offer excludes additional maintenance parts, dealer labor, wear parts, and fluids. Offer also includes a 36 month/5000 hour (whichever occurs first) Powertrain, Hydraulics and Technology Equipment Protection Plan (EPP). In some areas, EPP might be sold separately from the CVA. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply. Contact your Cat dealer for details.

Compact Equipment Offer: Terms and Conditions

Financing provided by Caterpillar Financial.
*Offer valid from October 1, 2024 through December 31, 2024. Offer only available on purchases of new mini excavators, micro excavators, skid steer loaders, and compact track loaders sold by participating Cat dealers to customers in the USA or Canada. Purchases (both machine and CVA) and machine delivery must occur by December 31, 2024. Offer subject to machine availability. Offer is subject to credit approval by Caterpillar Financial Services Corporation for US customers, and Caterpillar Financial Services Limited for Canadian customers. Not all customers will qualify. The credit $500 USD for CVA purchase can only be applied toward the purchase of a qualifying Cat Customer Value Agreement (CVA). CVA must be at least 2yr/1000hr and must include 1-year Preventative Maintenance Parts Kit, TA1 annual Inspection, signed CVA contract, and Product LinkTM. Amount of CVA credit is the same for all models and cannot exceed the price of the qualifying CVA. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply.

Privacy Policy

Users who submit a request for quote agree to receive communications from Louisiana Cat or its sales representatives.

Louisiana CAT follows CAM SPAN regulations and GDPR guidelines.

Users can manage their communications' opt-in and opt-out preferences online.

Users can request their information be removed from our database by sending an email at privacy@louisianacat.com or submitting a request online.

To view our privacy policy in full click here
