Exterior View
Interior View

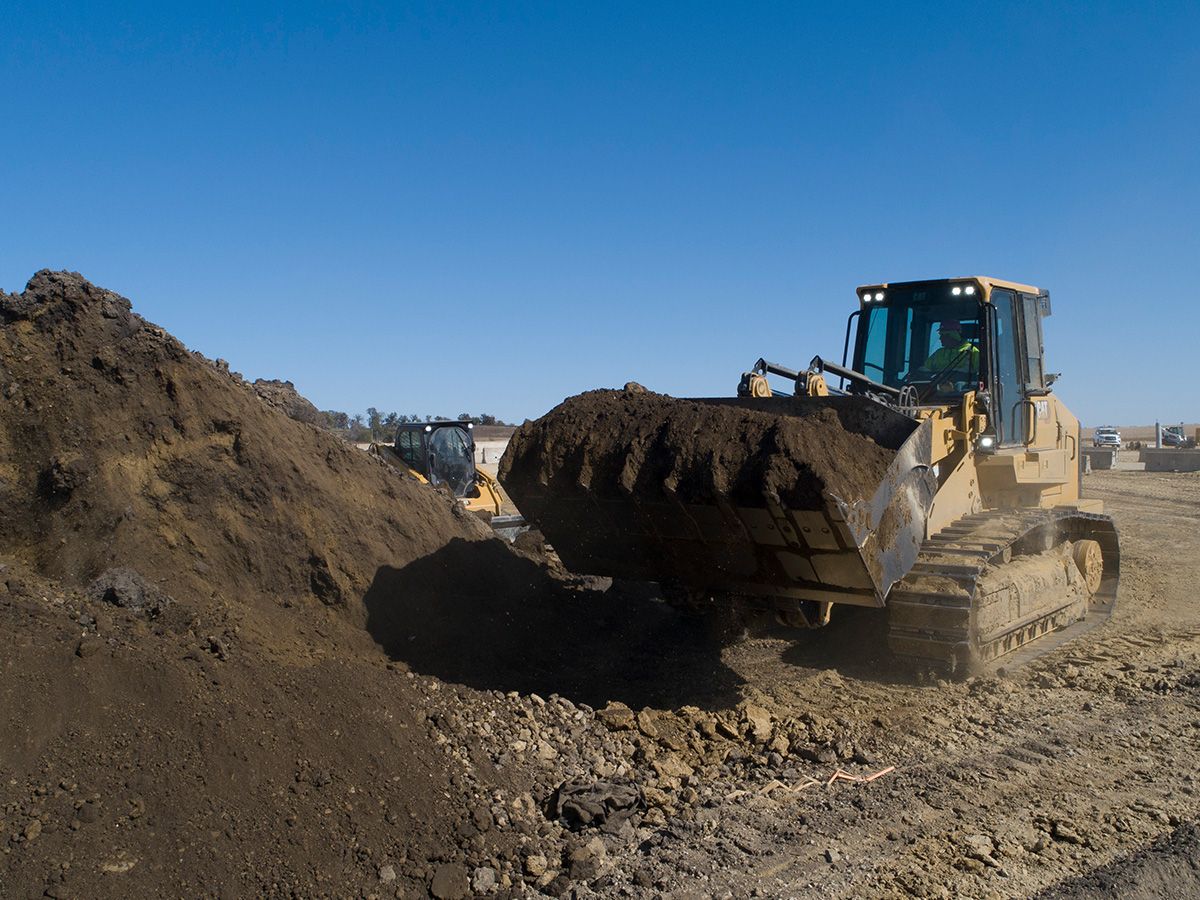

973 Track Loader

Save money and transport time with one rugged machine that does it all – land clearing, digging, grading, truck loading, slope work and more. Crawler loaders give you lower ground pressure and better traction so you can start the job sooner, and work longer, in all kinds of underfoot conditions. Cat® Track Loaders give you all this, plus outstanding performance and fuel efficiency.

Flywheel Power
275HP
Model
Cat® C9.3B
Net Power – ISO 9249/SAE J1349
275HP
Net Power – ISO 9249 (DIN)
279mhp
Emissions
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, Japan 2014 emission standards or Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/ EU Stage IIIA.
Note (1)
Cat U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, Japan 2014 engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 2
Note (2)
Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions Module (when equipped) and alternator. Advertised power is tested per the specified standard in effect at the time of m
Note (3)
Machine Build Number 12A
Operating Weight
65901lb
Capacity – General Purpose
4.2yd³
Capacity – Multi-Purpose
3.9yd³
Capacity – Performance Series
5yd³
Capacity – Landfill
6.4yd³
Capacity – Slag
3.9yd³
Width – General Purpose
118.5in
Width – Multi-Purpose
116.6in
Width – Performance Series
118.7in
Width – Landfill
118.5in
Width – Slag
116.5in
Note
Additional buckets and work tools available. Please consult with your Cat dealer.
Fuel Tank
119gal (US)
DEF Tank
9.2gal (US)
Operating Weight
65901lb
Width of Standard Shoe
27in
Ground Pressure
9.5psi
Operating Weight
71218lb
Width of Standard Shoe
33in
Ground Pressure
8.4psi
Operating Weight
67164lb
Width of Standard Shoe
27in
Ground Pressure
9.7psi
Overall Machine Length*
295in
Machine Height – Top of Cab
138.2in
Overall Width – Without Bucket
111.6in
Hinge Pin Height at Maximum Lift
166.1in
Note
*With General Purpose bucket with bolt-on full edge
Track on Ground
115.3in
Track Rollers/Shoes – Each Side
40
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Power Train
    • Cat C9.3B Diesel Engine
    • Hydraulic demand fan
    • Hydrostatic transmission
    • Load sensing implement pump
    • Modular cooling system
  • Operator Environment
    • 12V power outlet and 5V USB port
    • Adjustable armrests
    • Configurable implement levers
    • Full-color 254 mm (10 in) touchscreen display with integrated rear camera, machine slope indicator, bucket angle indicator
    • Grab handle on dash
    • Heat/Air conditioning
    • Integrated rearview HD camera
    • Lights – 4 halogen
    • Standard cab with one sliding side window and four halogen lights: two facing forward, roof mounted, two facing rearward, integrated in the air conditioner unit
    • 24V radio ready
    • Storage areas throughout cab
    • Lunch box storage with strap holder
  • Cat Technology
    • Slope Indicate
    • Product Link ready
  • Undercarriage
    • HDXL track
    • Oscillating track roller frames
  • Buckets
    • Pin-on
    • Cat Advansys bucket tips/Ground Engaging Tools
  • Service And Maintenance
    • 4 x 2 Easy tie-down points on chassis
    • Metallic fuel tank
    • Ecology drains
    • Ground level service center
    • Hinged radiator guard and swing out fan
    • Shovel holder
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Power Train
    • Cat C9.3B diesel engine with engine-mounted aftertreatment to meet U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, Japan 2014 emission standards
    • Cat C9.3B diesel engine to meet Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA
  • Operator Environment
    • Communication radio ready – FM
    • Deluxe seat
    • Joystick or two-lever implement controls
    • Joystick or V-lever-and-pedal steering controls
    • LED flashing beacon
    • Lights – 2 LED front/bottom of cab, access light
    • Lights – 8 LED
    • Premium seat
    • Radio AM/FM Bluetooth
    • Radio AM/FM/DAB+ Bluetooth
    • Radio AM/FM/Sirius XM Bluetooth
    • Deluxe cab package with two sliding side windows and eight LED lights: four roof-mounted facing forward, two facing rearward and two facing side integrated in the air conditioner unit
    • Steel Mill cab with thermal protection, all sealed windows, windshield and front light protection, eight halogen lights: four facing forward, two facing sideways, two facing rearward integrated into air conditioner unit
  • Cat Technology
    • Remote Flash/Remote Troubleshoot
    • Product Link, Cellular
    • Product Link — Dual Cellular/Satellite
    • Cat Payload
    • Grade control mast
  • Undercarriage
    • Single, Double or Triple Grouser track shoes
    • Waste or Low Ground Pressure (LGP) undercarriage
    • Steel Mill undercarriage
  • Buckets
    • Fusion quick coupler
    • General Purpose bucket
    • Landfill bucket
    • Multi-Purpose bucket
    • Performance bucket
    • Slag bucket
  • Service And Maintenance
    • Cold weather package
    • Fast fuel fill
    • Insulated metallic fuel tank (Steel Mill)
    • High Speed oil change
    • Hydraulic reversing fan
    • Hydraulic tilt cab
    • Refueling pump
  • Attachments
    • Bumper
    • Counterweights
    • Multi-shank ripper
    • Ripper hitch
    • Ripper-ready rear hydraulics
    • Striker bar box
  • Special Arrangements
    • Low Ground Pressure (LGP) Arrangement
    • Waste Handler
    • Ship Hold Arrangement
    • Steel Mill Arrangement
