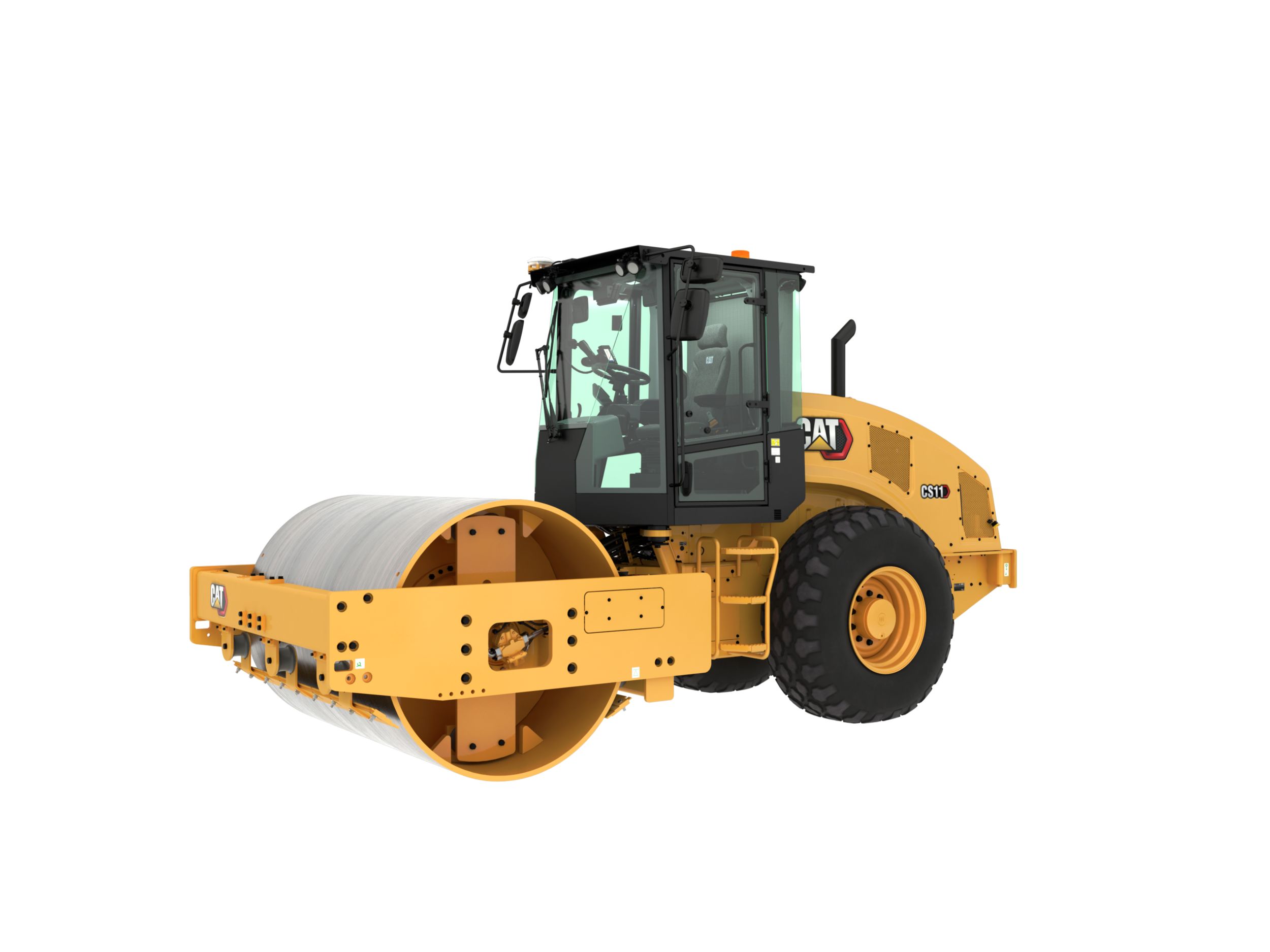

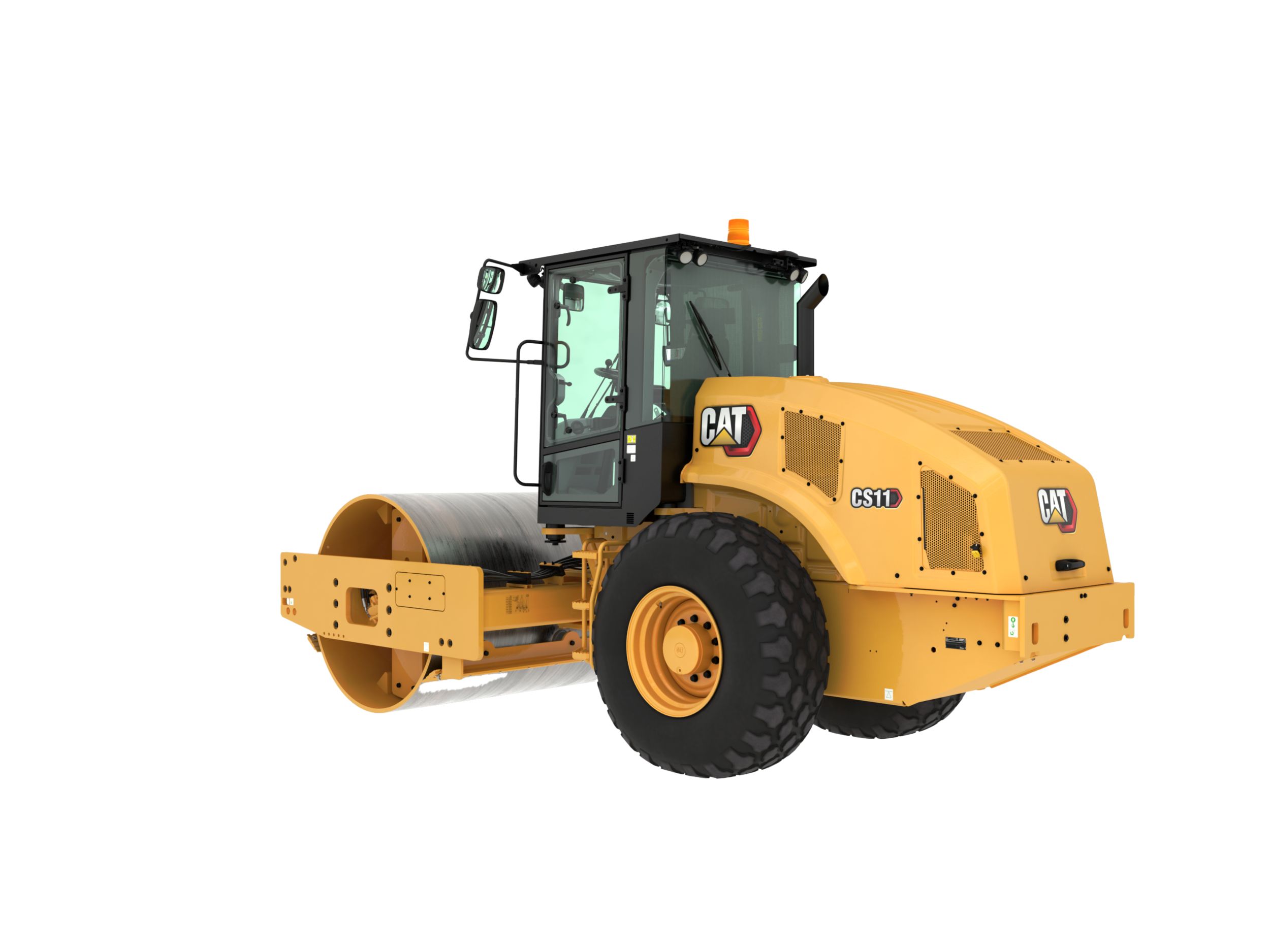

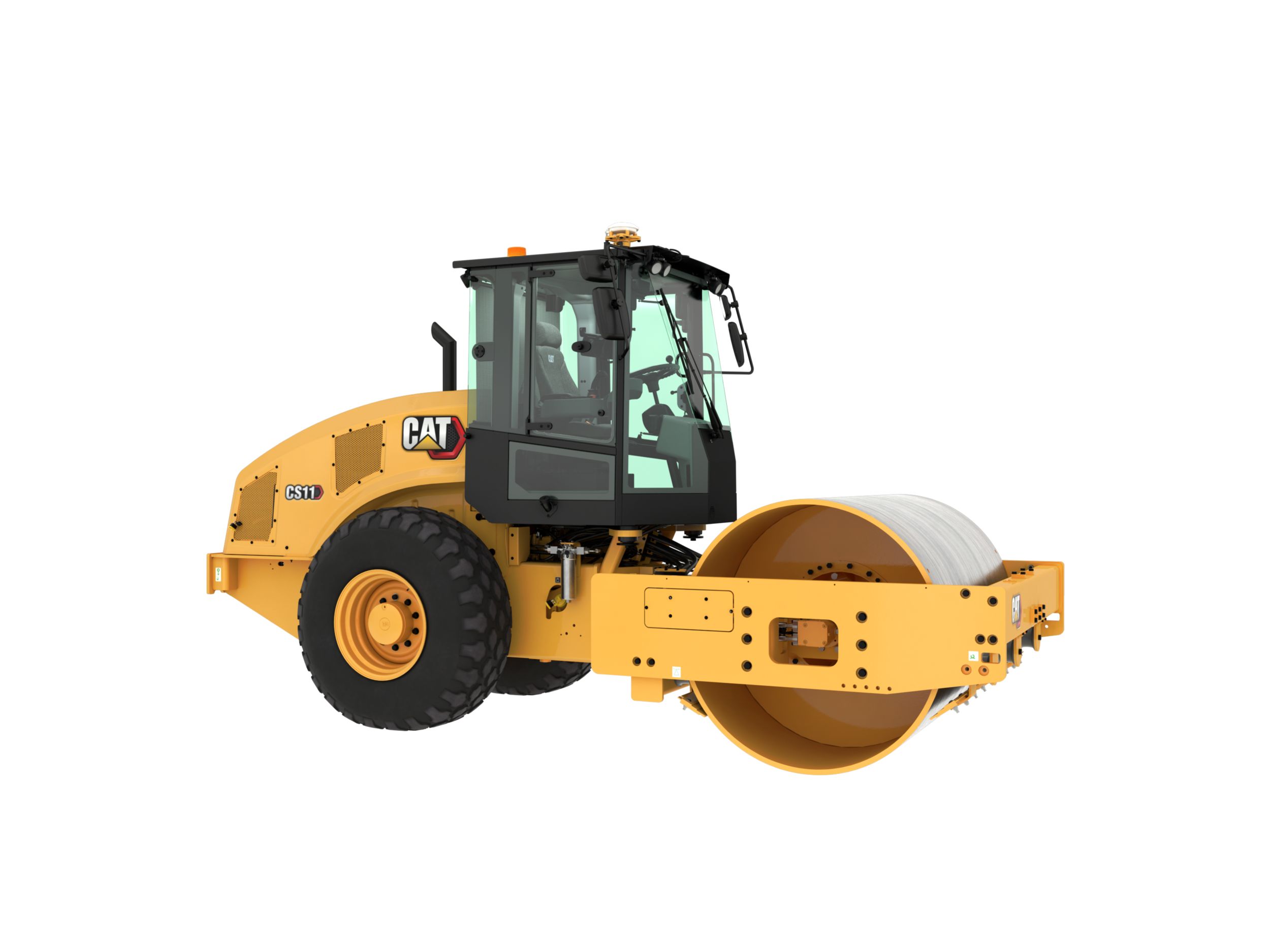

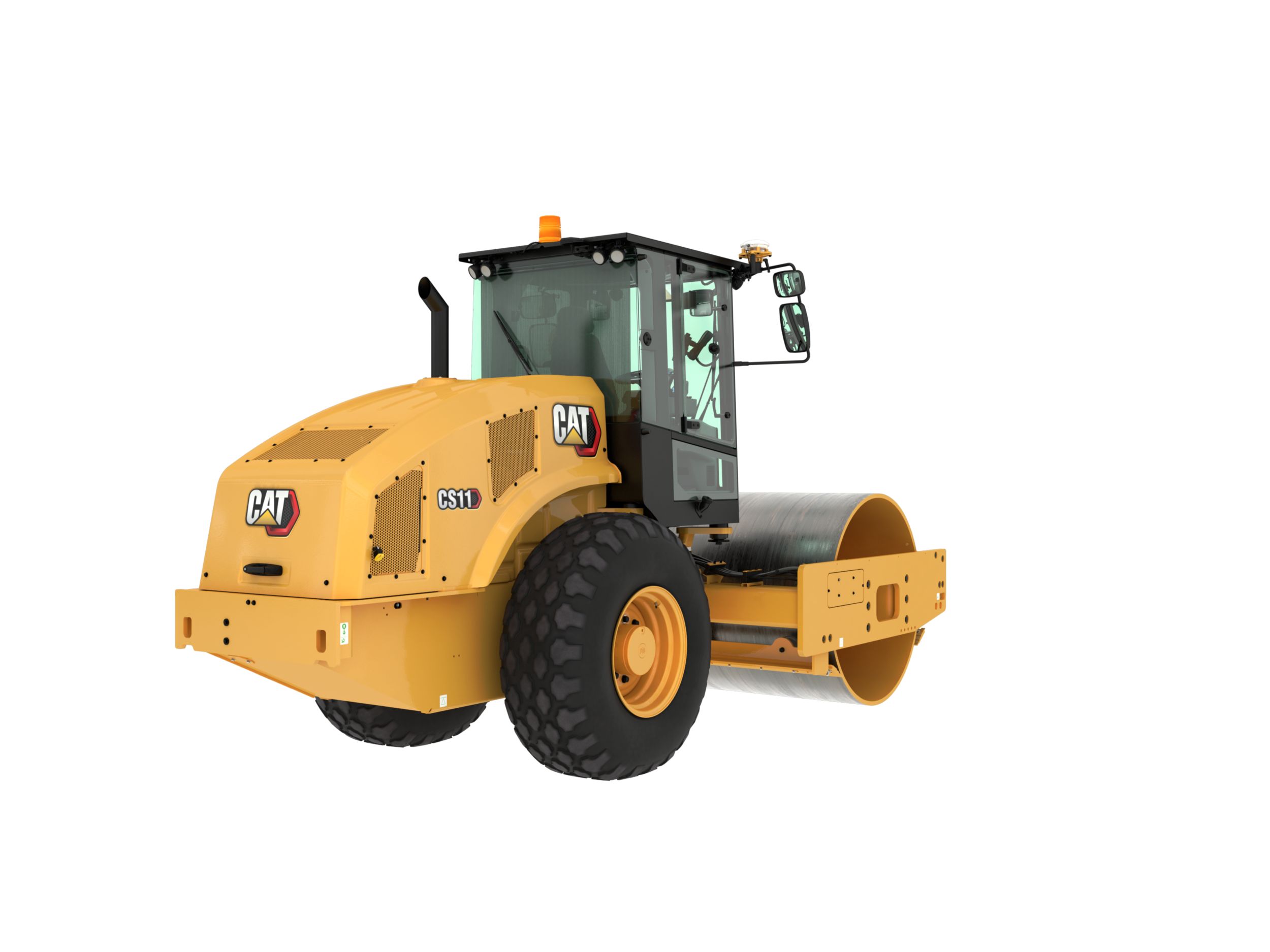

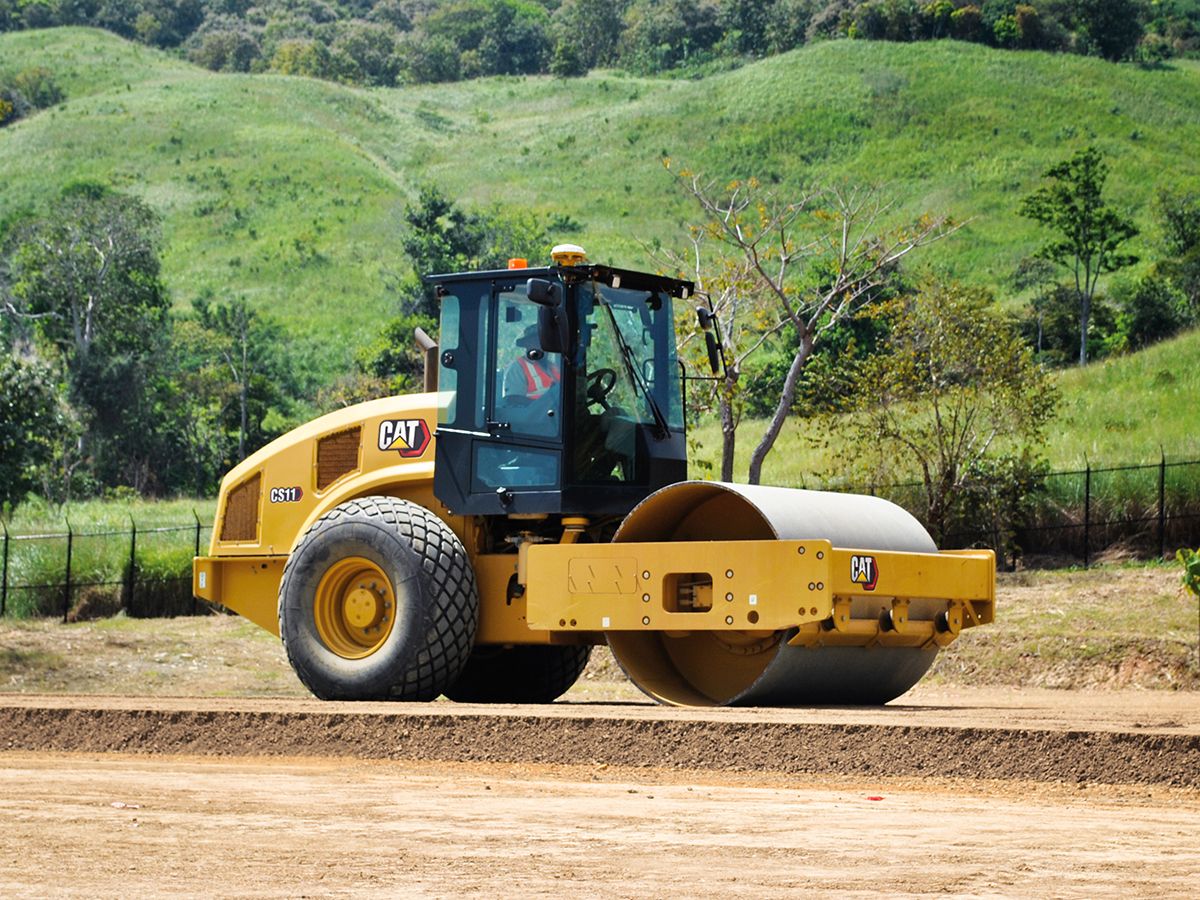

CS11 Vibratory Soil Compactor

The Cat® CS11 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Request a Quote View rental options Apply for credit
Operating Weight – With Cab
23823lb
Operating Weight – With ROPS/FOPS Canopy
23380lb
Weight – Drum with Cab
12963lb
Weight – Drum with ROPS/FOPS Canopy
12758lb
Note (1)
Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.
Compaction Width
84in
Overall Length
19.2ft
Overall Width
7.5ft
Maximum Height
10.2ft
Drum Diameter
60.4in
Wheel Base
9.5ft
Gross Power
132.8HP
Engine Power – ISO 14396
131.3HP
Net Power – ISO 9249
109.8HP
Net Power – SAE J1349
108.4HP
Note (1)
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model
Cat® C4.4
Emissions
U.S. EPA Tier 4 Final
Stroke
5in
Bore
4.1in
Vibratory Frequency – Standard
1830VPM
Variable Frequency Option Range
23.3 – 30.5 Hz (1400-1830 vpm)
Nominal Amplitude – High
0.075in
Nominal Amplitude – Low
0.038in
Centrifugal Force – Maximum
54765lb
Centrifugal Force – Minimum
27491lb
Static Linear Load – With Cab
154.3lb/in
Static Linear Load – With ROPS/FOPS Canopy
151.8lb/in
Ground Clearance
17in
Curb Clearance
21.4in
Turning Radius – Inside Drum Edge
12.1ft
Travel Speed – Maximum
6.7mile/h
Fuel Tank Capacity
69.7gal (US)
DEF Tank
5gal (US)
Cooling System
8.3gal (US)
Engine Oil – With Filter
2.3gal (US)
Eccentric Weight Housings (combined)
6.9gal (US)
Axle and Final Drives
4.8gal (US)
Hydraulic Tank
13.2gal (US)
Recyclability
96%
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Operator Environment
    • ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat
    • Adjustable Seat with Integrated Console
    • LCD Display with Lockable Vandalism Guard
    • Adjustable Tilting Steering Column with Integrated Cup Holders
    • Rear Vision Camera System with Color Touchscreen Display
    • High Visibility 50 mm (2 in) Seat Belt
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • Vibratory System
    • Smooth Drum
    • Pod-Style Eccentric Weight Housings
    • Dual Amplitude, Single Frequency
    • Auto-vibe Function
    • Single Adjustable Steel Scraper
  • Technology Solutions
    • VisionLink®
  • Powertrain
    • Cat® C4.4 Engine
    • Air Cleaner, Dual Element
    • Three Speed Throttle Switch including Eco-mode
    • Automatic Speed Control (ASC)
    • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
    • Fuel Filter, Water Separator, Priming Pump, Water Indicator
    • Tilting Radiator / Hydraulic Oil Cooler
    • Dual Braking System
    • Two-Speed Hydrostatic Transmission
    • Limited Slip Differential
  • Electrical
    • 24 volt Electrical System
    • 100 ampere Alternator
    • 750 Cold-cranking Amps Battery Capacity
  • Other
    • Lockable Engine Enclosure, Hydraulic and Fuel Tanks
    • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
    • S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
    • Halogen Working Lights (4)
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Operator Environment
    • ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors
    • Sun Visor (Cab)
    • Roll-Down Screen (Cab)
    • High Visibility 76 mm (3 in) Seat Belt
  • Vibratory System
    • Removable Shell Kit – Oval or Square Pads
    • Variable Frequency
    • Dual Adjustable Steel Scrapers
    • Dual Adjustable Polyurethane Scrapers
  • Technology Solutions
    • Measure – Machine Drive Power (MDP)
    • Measure – Compaction Meter Value (CMV)
  • Powertrain
    • Transmission Guard
  • Other
    • Factory Filled Bio-Hydraulic Oil
    • Halogen Working Lights (8)
    • Amber Rotating Beacon
