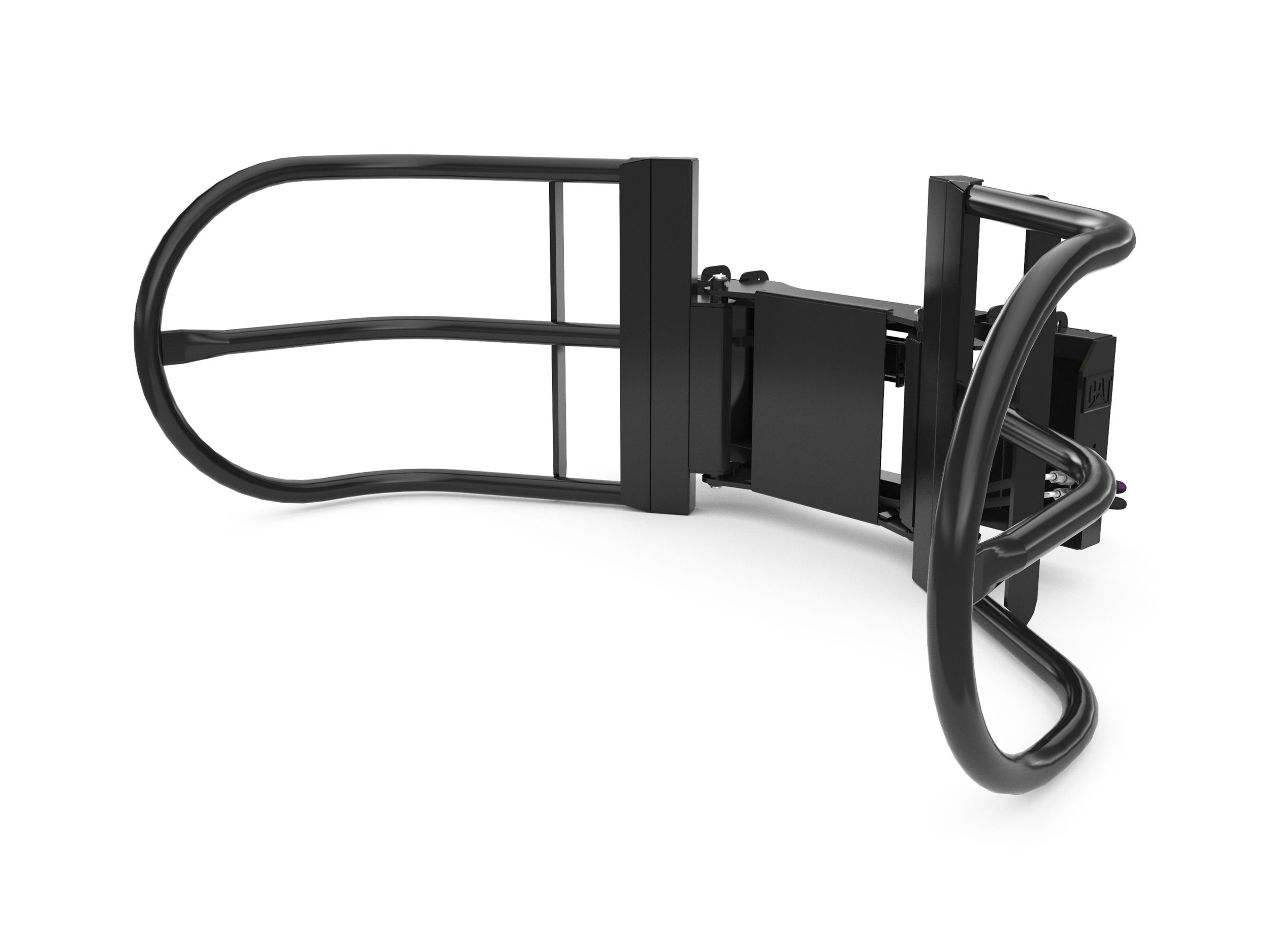

Exterior View

2133 mm (84 in) Bale Grab

Cat® Bale Grabs for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders and Compact Wheel Loaders are designed for grasping and carrying baled material. Bales of wheat, hay and other materials are easily transported for livestock feed, bedding, to and from bale wrapper, and movement to storage. The Bale Grab firmly grasps baled materials but due to the rounded arm design no damage will take place to the bale. Offering the ability to pick up bales sitting flat or on their side the Bale Grab increases machine versatility to manipulate round or square bales in any position.

Overall Width
55.2in
Overall Height
34.4in
Maximum Opening Width
84in
Capacity
2405.2lb
Overall Depth
64.2in
Weight
579.8lb
Working Pressure
3045.8psi
Internal Width, Arms Closed
36.1in
Required Hydraulics
Standard Flow
