Photos

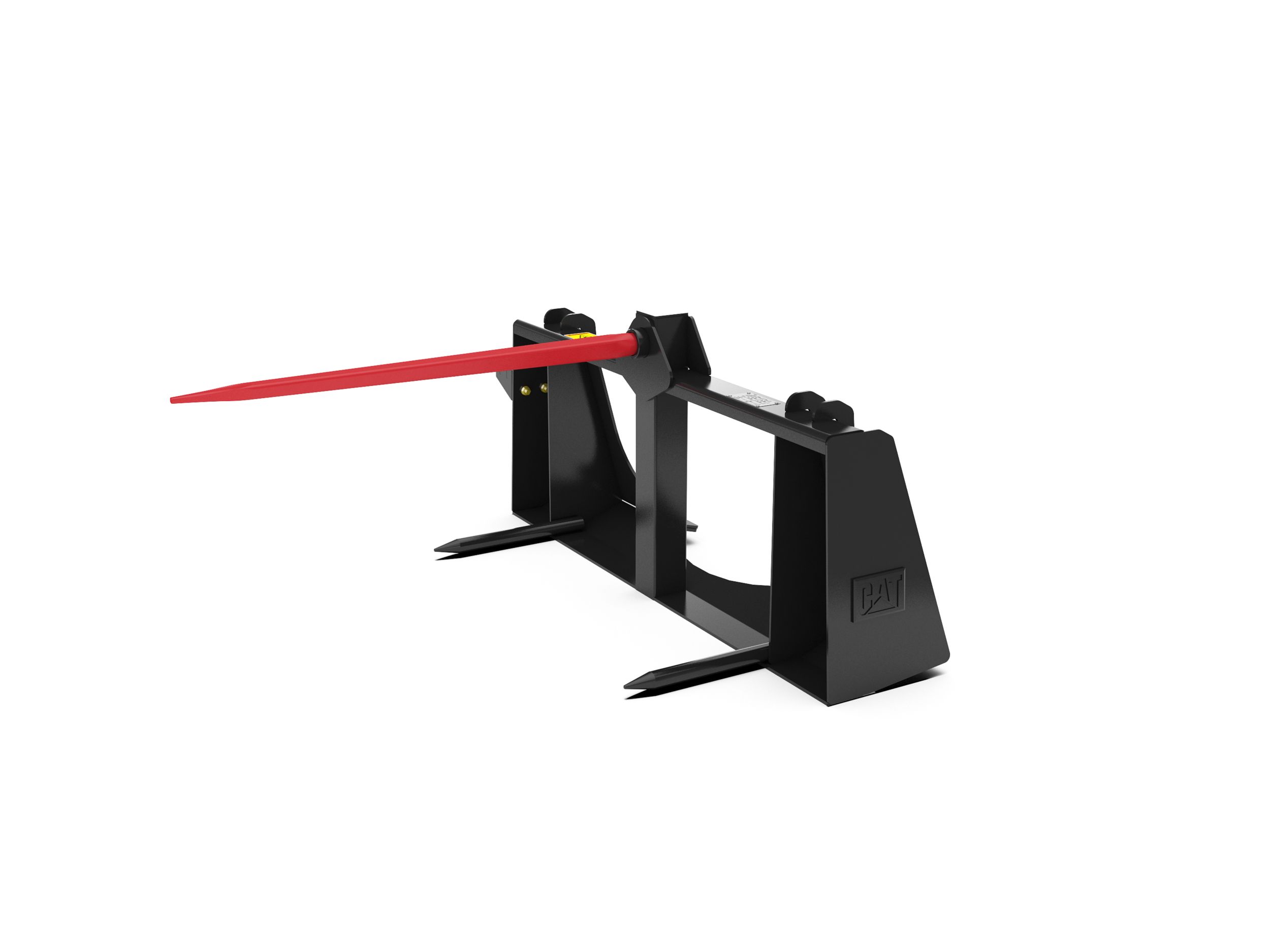

Exterior View
|
|
|
|
|
Specs
Dimensions
- Weight
- 154.3lb
- Capacity
- 2000lb
- Overall Width
- 50.6in
- Overall Height
- 22.4in
- Overall Depth
- 46.7in
- Tine Spacing
- 31.5in
- Usable Tine Length
- 35in
- Weight
- 154.3lb
- Capacity
- 2004lb
- Usable Tine Length
- 35in
- Tine Spacing
- 31.5in
- Stabilizer Tine Length
- 11.1in
Features
Application
Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.
Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.
Two Length Options
Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.
Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.
Stabilizer Spears
Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.
Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.
Conical Tapered Tines
A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
