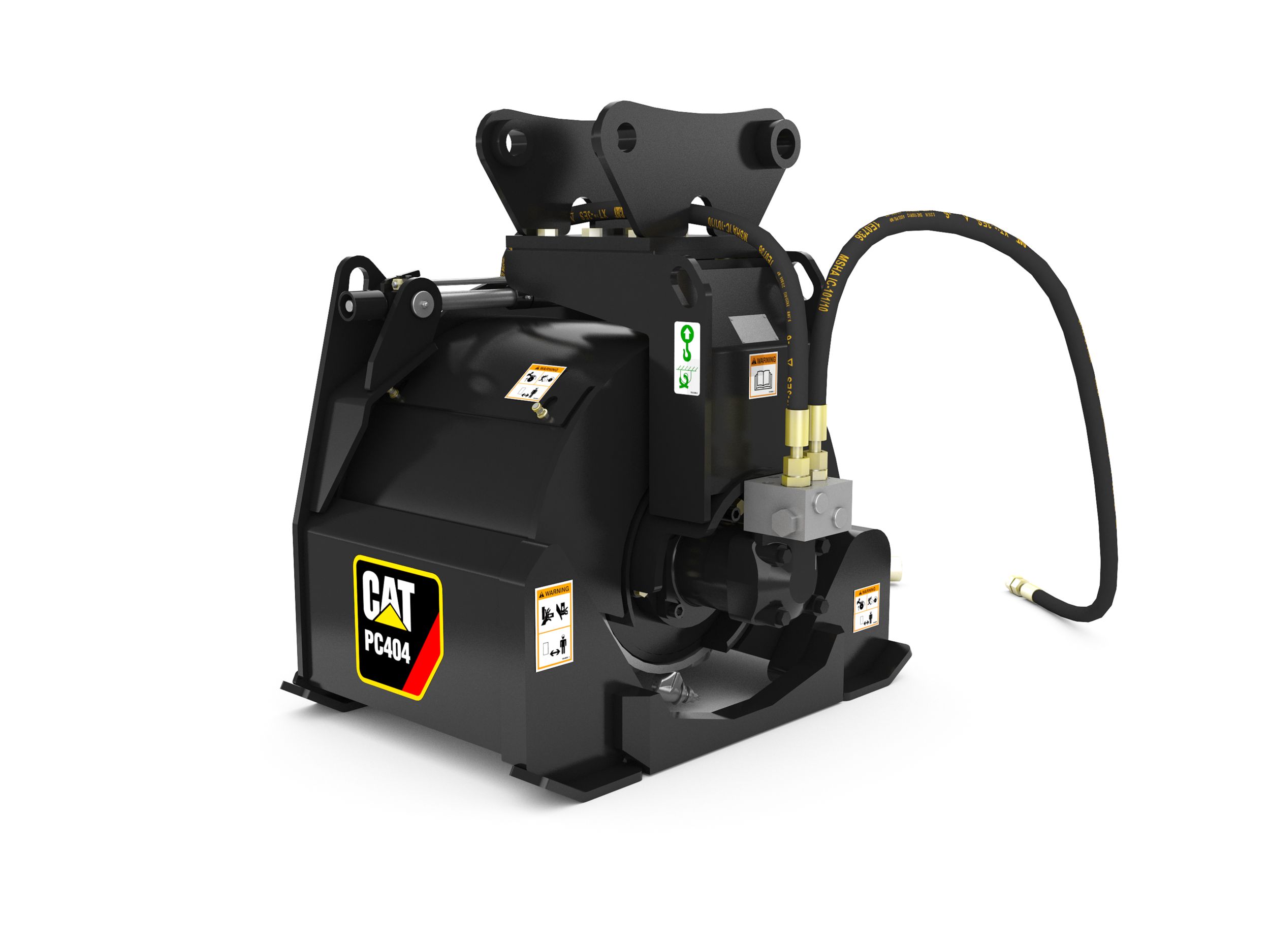

PC404 Cold Planer

Photos

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

Unit Weight
1500.0 lb
Hydraulic Flow Range
80-160 L/min (21-42 gal/min)
Hydraulic Pressure Range
160-240 bar (2,320-3,480 psi)
Overall Width
32.5 in

Specs

Dimensions

Unit Weight
1500.0lb
Hydraulic Flow Range
80-160 L/min (21-42 gal/min)
Hydraulic Pressure Range
160-240 bar (2,320-3,480 psi)
Overall Width
32.5in
Overall Height
40.5in
Overall Length
37.5in
Maximum Drum Width
17.7in
Conical Bits
48
Standard Bit Type
Asphalt/Concrete
Maximum Cutting Depth
4.9in
Optimal Hydraulic Flow
80-160 L/min (21-42 gal/min)
Optimal Hydraulic Pressure
160-240 bar (2320-3480 psi)
Rotation
130 degrees
Overall Width
32.6in
Overall Length
37.4in
Overall Height
40.6in
Weight
1499.1lb
Working Width
17.7in
Required Hydraulics
Standard Flow

Features

Application

Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.

Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.

Self-leveling Design

Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.

Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.

Manual Depth Control

Manual depth control allows the operator to plane up to 5 inches.

Rotation

130 degrees of rotation offers smooth, unrestricted performance.

Direct Drive System

Direct drive system features a variable speed, uni-directional, gerotor style hydraulic motor for optimum speed and torque.

Direct drive system features a variable speed, uni-directional, gerotor style hydraulic motor for optimum speed and torque.
