Exterior View

B4 Non-Silenced Hydraulic Hammer

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Operating Weight – With Tool
350.5lb
Energy Class
272.9ft·lbf
Machine Class
2-5 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders
Tool Shaft Diameter
2.1in
Impact Frequency
600-1100 bpm
Minimum Operating Pressure
1491.9psi
Minimum Carrier Weight
5599.7lb
Optimal Hydraulic Flow
25-50 lpm (6.6-13.2 gpm)
Overall Width
11.8in
Overall Length
13.4in
Overall Height
46.9in
Height – Without Tool
32.7in
Sound Level
128 dB

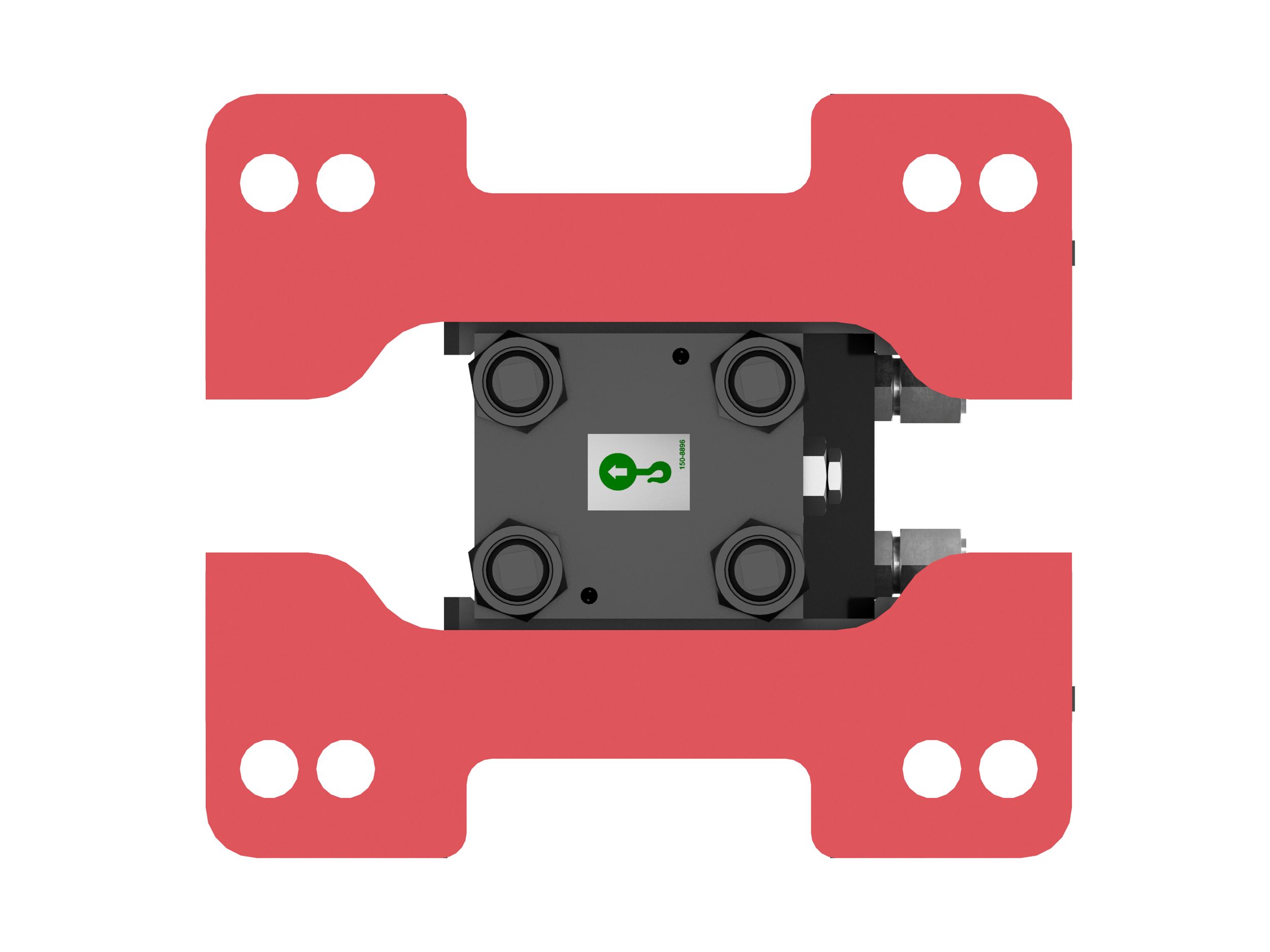

Mounting Bracket Size
Small-Medium
