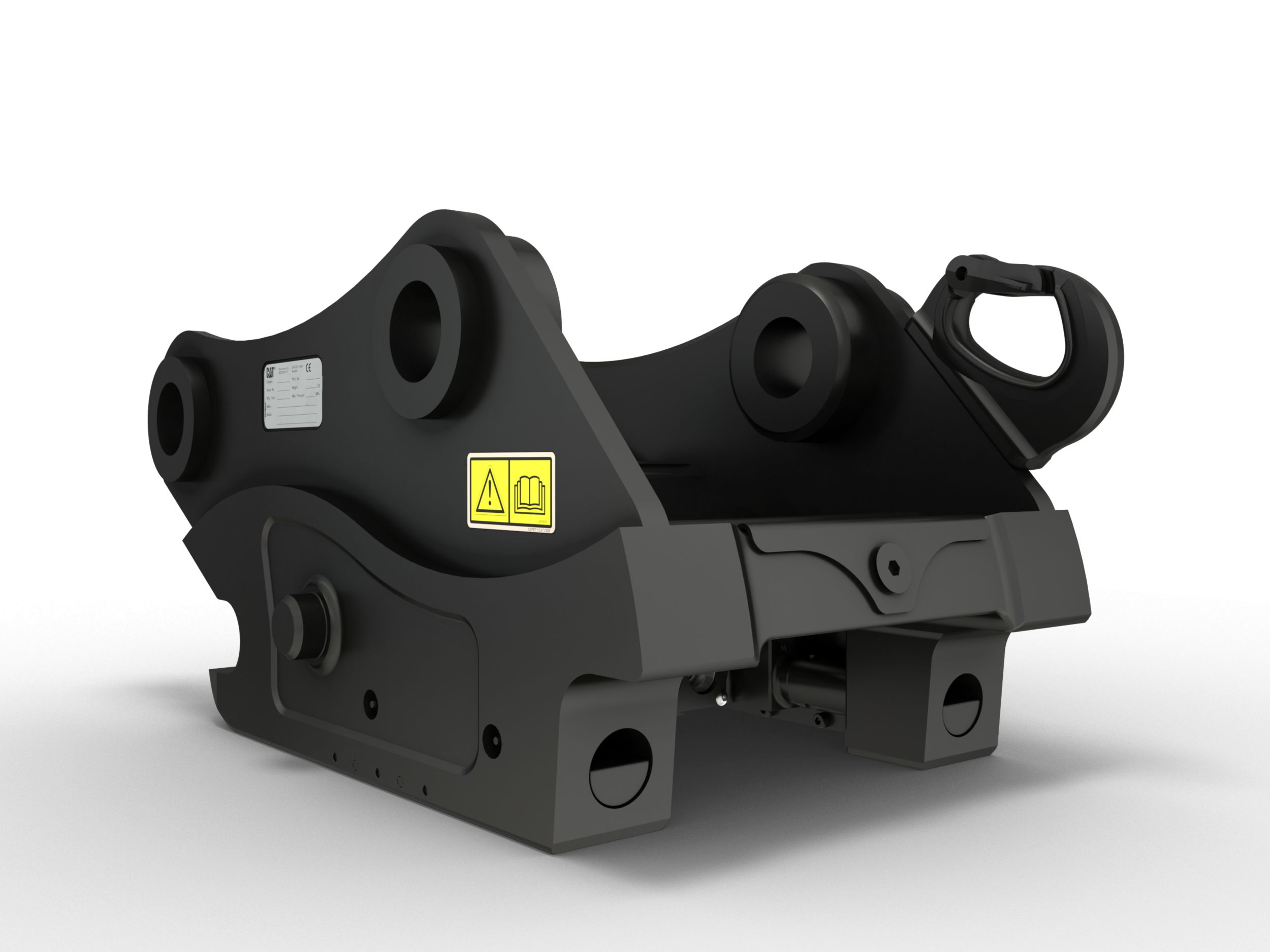

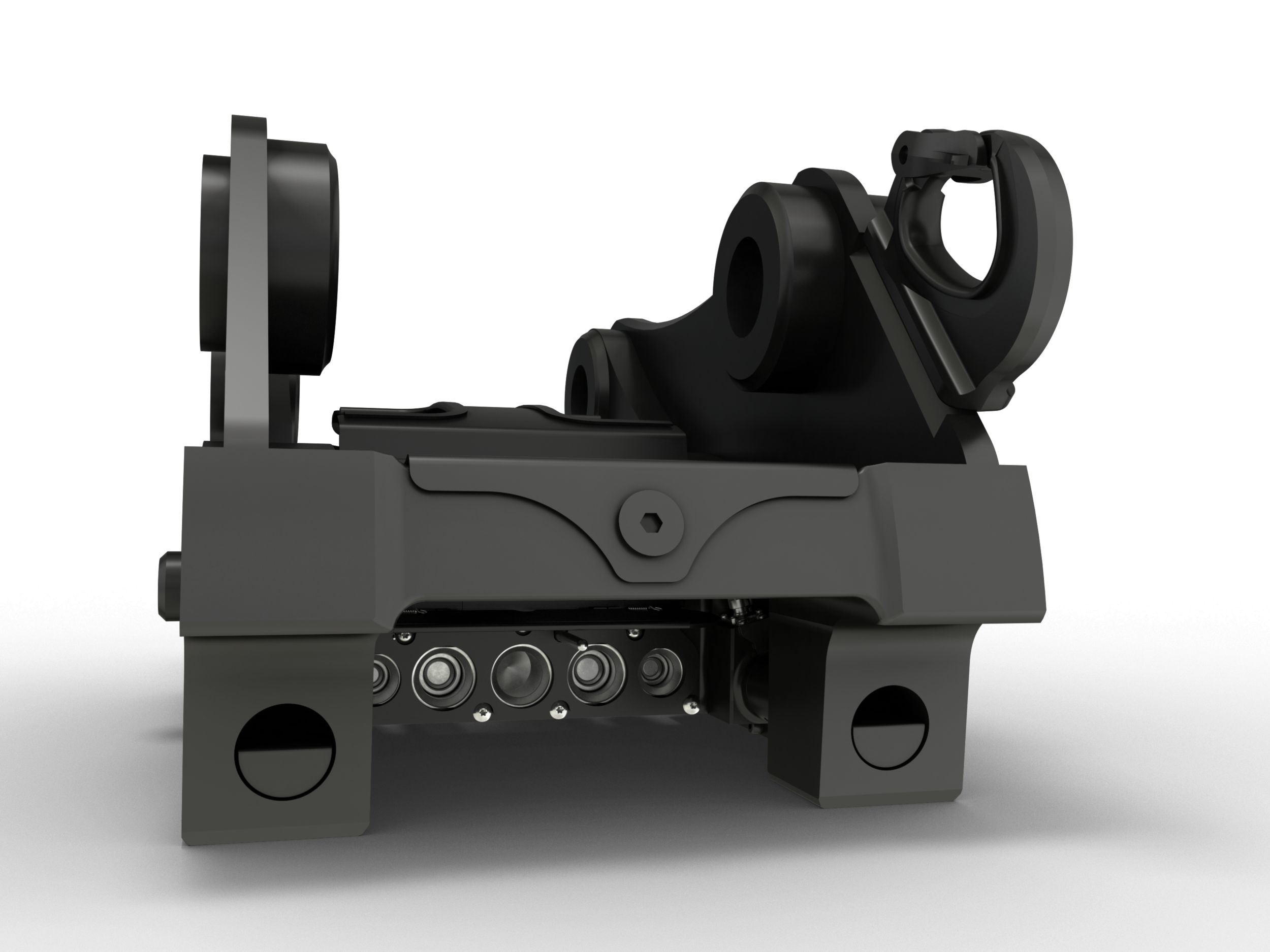

Hydraulic Connecting S Type Coupler HCS65: 583-0661

Cat® Hydraulic Connecting S Type Couplers connect to your machine’s hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Maximum Operating Pressure
5076psi
1/2″ Hydraulic Connectors (Mounted)
2
1/2″ Hydraulic Connector Flow
21gal/min
3/4″ Hydraulic Connectors (Mounted)
2
3/4″ Hydraulic Connectors (Optional)
1
3/4″ Hydraulic Connector Flow
59gal/min
Machine Class
14-20
Height
16.1in
Length
32.5in
Width
20in
Weight
474lb
Lift Hook Capacity
5ton (US)
