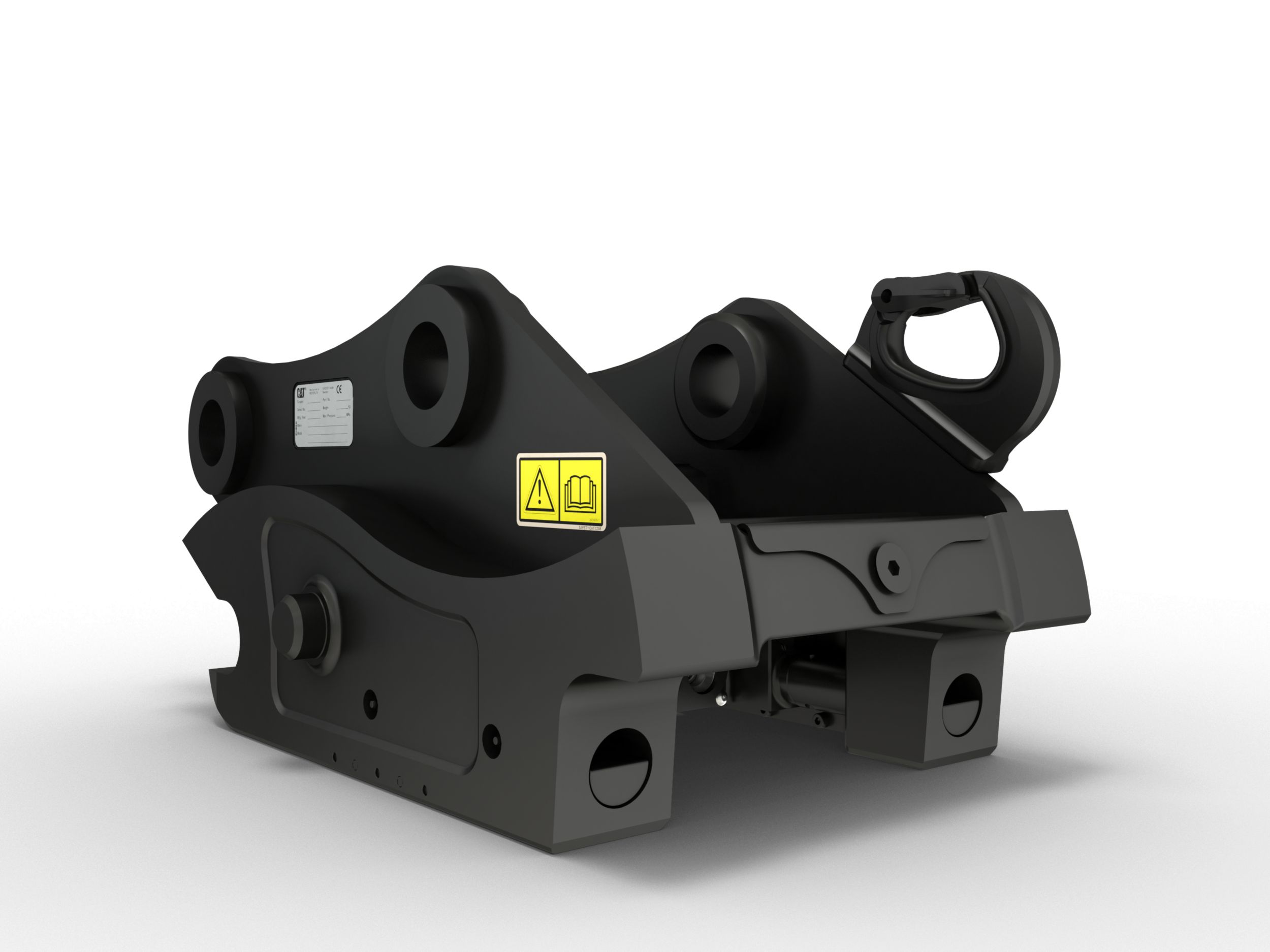

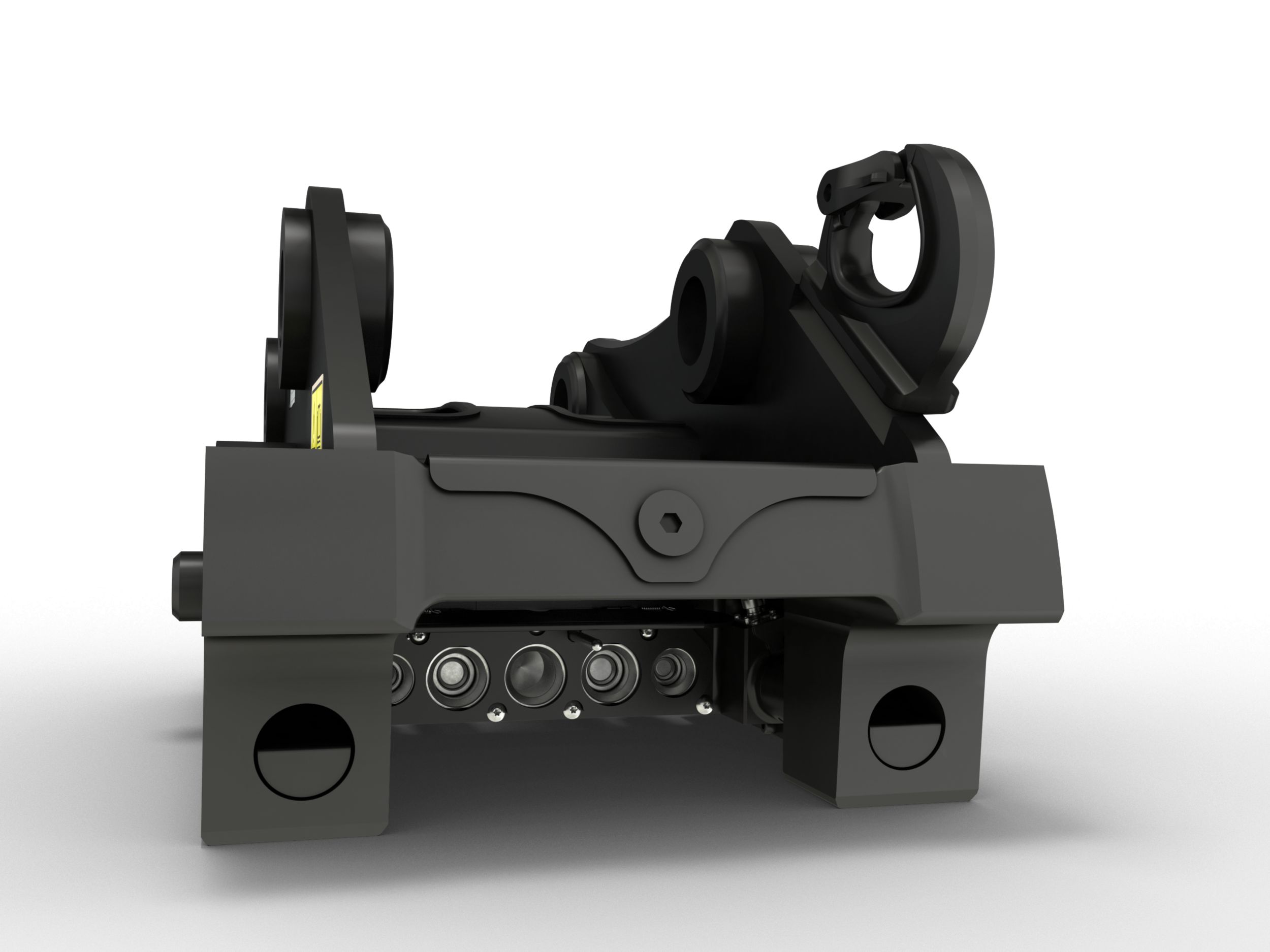

Hydraulic Connecting S Type Coupler HCS65: 590-2380

Cat® Hydraulic Connecting S Type Couplers connect to your machine’s hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Machine Class
14-20
Height
15.2in
Length
30.9in
Width
19.4in
Maximum Operating Pressure
5076psi
1/2″ Hydraulic Connectors (Mounted)
2
1/2″ Hydraulic Connector Flow
21gal/min
3/4″ Hydraulic Connectors (Mounted)
2
3/4″ Hydraulic Connectors (Optional)
1
3/4″ Hydraulic Connector Flow
59gal/min
Weight
430lb
Lift Hook Capacity
5ton (US)
