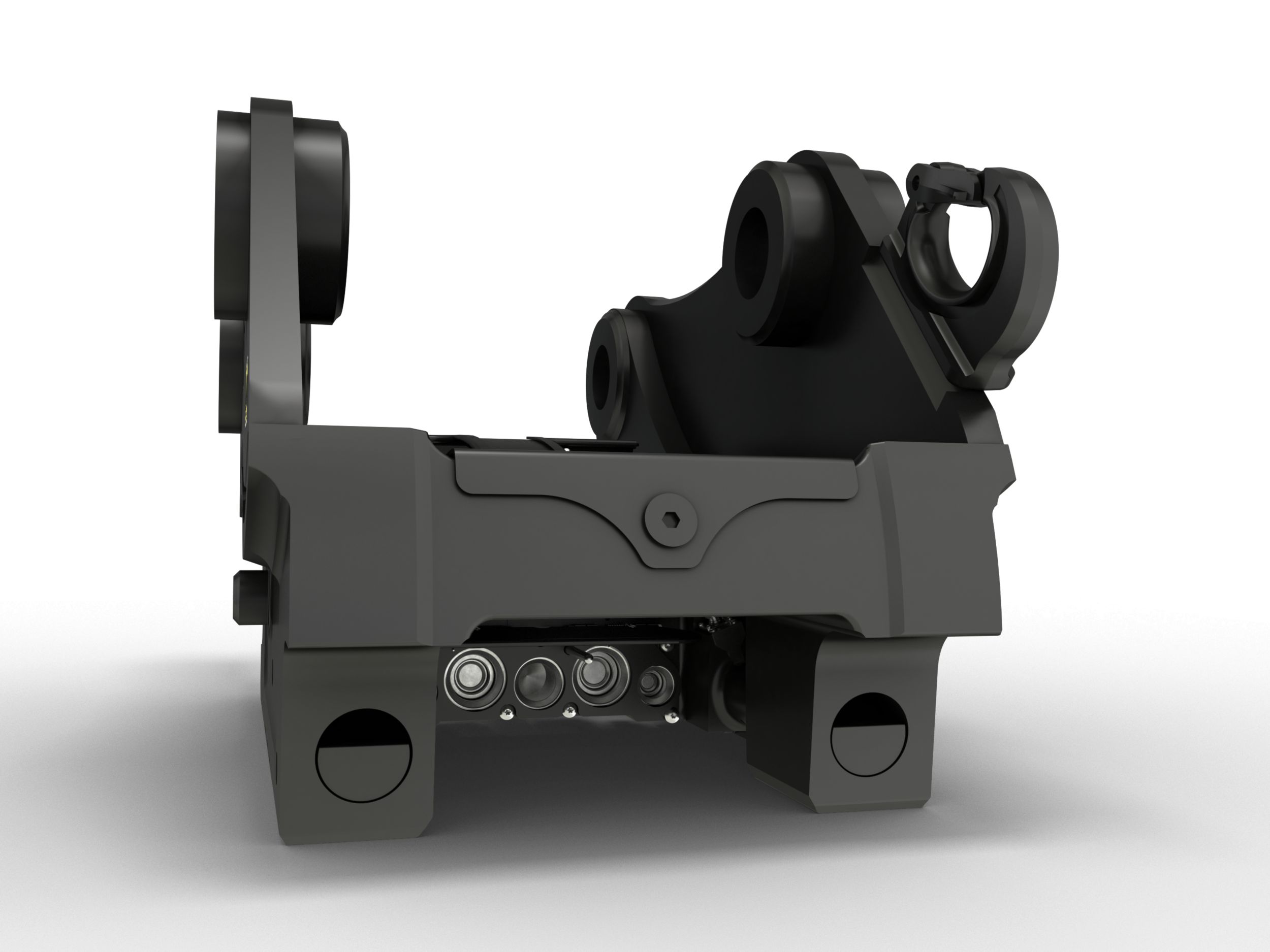

Hydraulic Connecting S Type Coupler HCS70: 598-7847

Cat® Hydraulic Connecting S Type Couplers connect to your machine’s hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Machine Class
14-30
Height
20.7in
Length
36.7in
Width
21.6in
Maximum Operating Pressure
5076psi
1/2″ Hydraulic Connectors (Mounted)
2
1/2″ Hydraulic Connector Flow
21gal/min
3/4″ Hydraulic Connectors (Optional)
1
3/4″ Hydraulic Connector Flow
59gal/min
1″ Hydraulic Connectors (Mounted)
2
1″ Hydraulic Connector Flow
100gal/min
Weight
730lb
Lift Hook Capacity
8ton (US)
