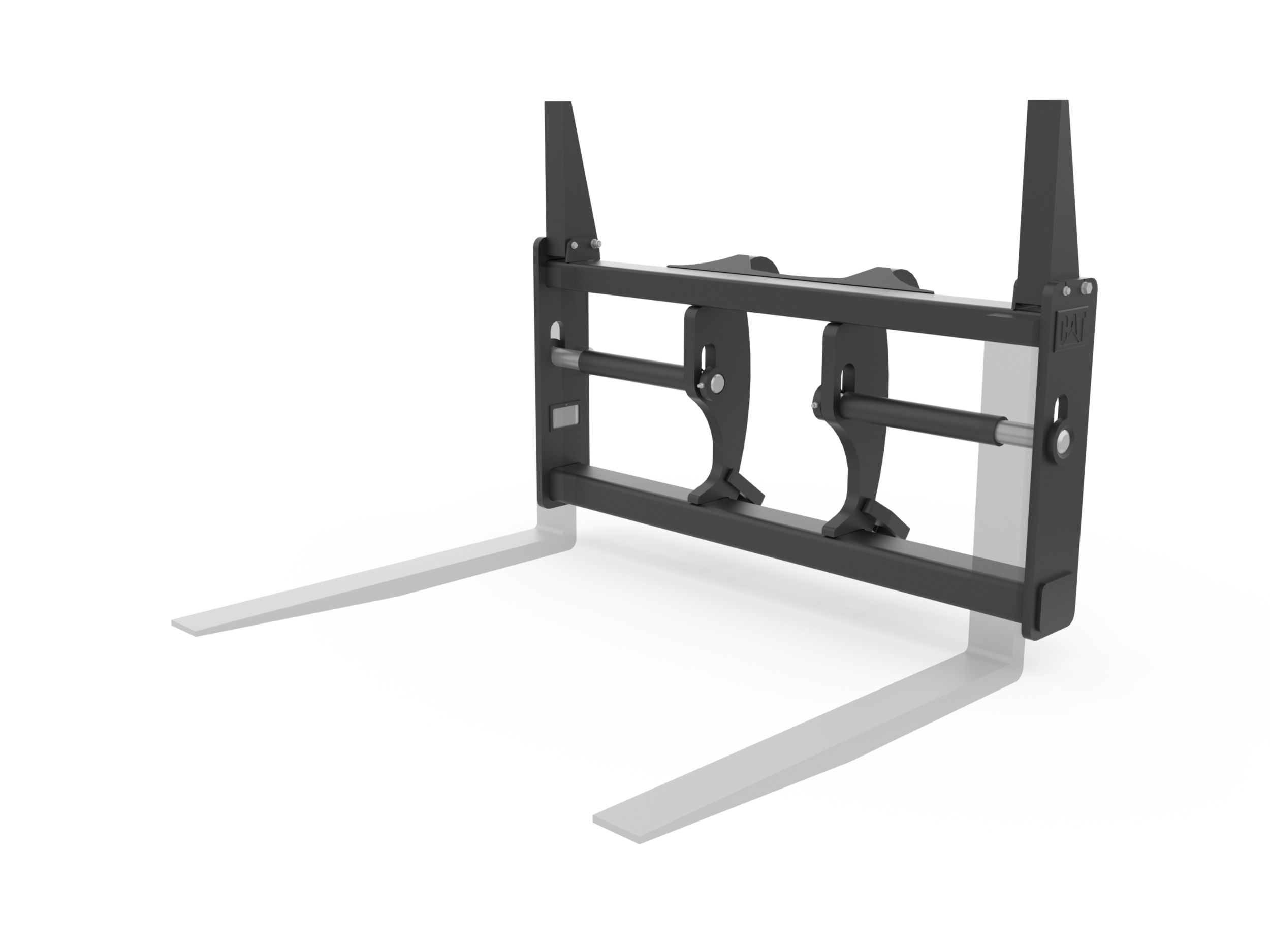

2184 mm (86 in) Log & Lumber Fork Carriage

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.

Interface Type
Fusion™ Coupler
Tine Configuration
Non-swinging, Floating
Height
59.8in
Weight
1241.2lb
Width
85.6in
Length
19.1in
Tine Spacing Range – Outside Width
942-2074 mm (37-82 in)
