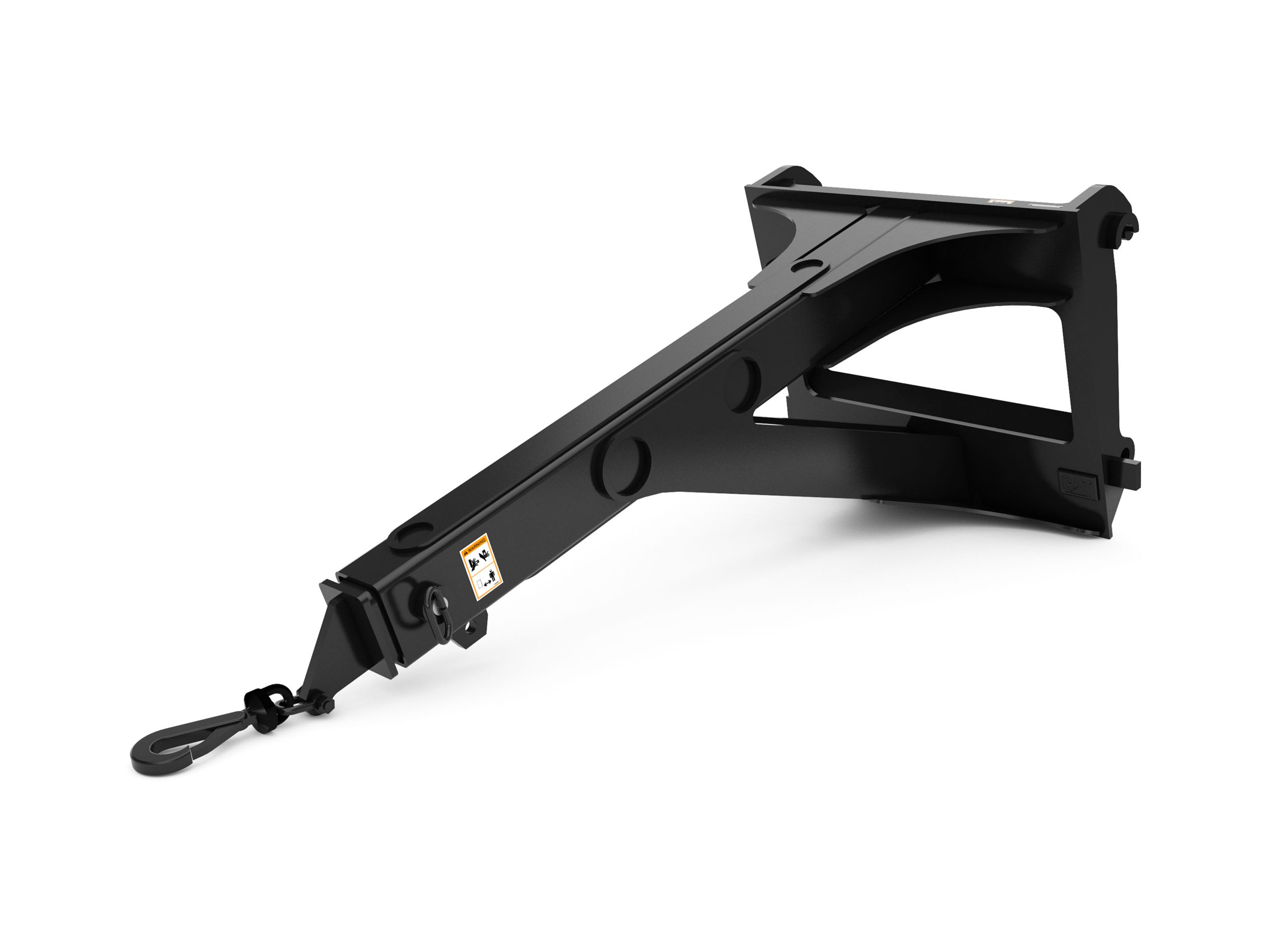

4203 mm (165 in) Material Handling Arms – Loader

Move pipe, concrete blocks, highway dividers and other construction materials quickly and easily with an Extendable Material Handling Arm. Length of the arm is manually adjustable to match load and reach requirements.

Overall Width
29.8in
Maximum Load Rating
5361.6lb
Maximum Horizontal Reach
165.7in
Weight
1075.9lb
Overall Height
40.8in
Extended Length
165.5in
Retracted Length
102.5in
Number of Adjustments
3
Length Between Adjustments
31.5in
Interface Type
ISO Coupler
