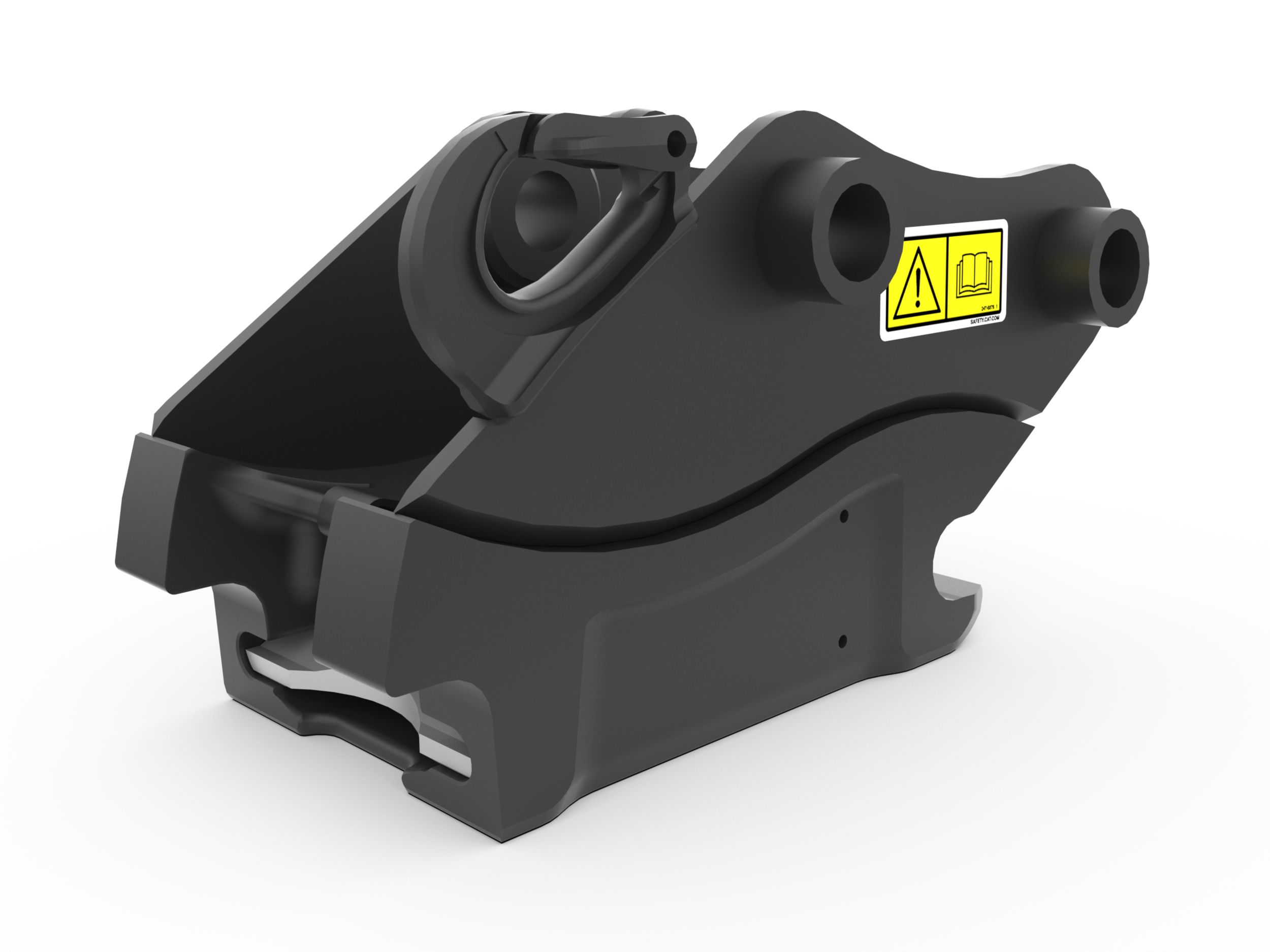

S-40 Pin Grabber S Type Coupler For 3 Ton Mini Excavators

Cat® S Type Couplers for Mini Excavators are an optimal design for a dedicated quick coupler solution. Low offset, pin grabber ability, and a wedge type locking system ensures a tight fit, no attachment play during use. It also creates the solution to exchange work tools among different platforms and brands. In combination with the Tilt Rotate System that can be equipped with an S Type Coupler and the variety of different buckets offered, it provides a complete attachment solution for Mini Excavators. The coupler is designed with the highest safety standards and comes with a visible locking mechanism.

Weight
92.6lb
Lifting Hook Capacity
4409.2lb
Width
10in
Overall Length
18.5in
Overall Height
10.3in
Pin Diameter
1.6in
Machine Class
3-4 Ton Mini Excavators
Interface Type
Pin on
Required Hydraulics
Dedicated Factory Installed
Maximum Operating Pressure
4351.1psi
Coupler Type
S-40 Pin Grabber
