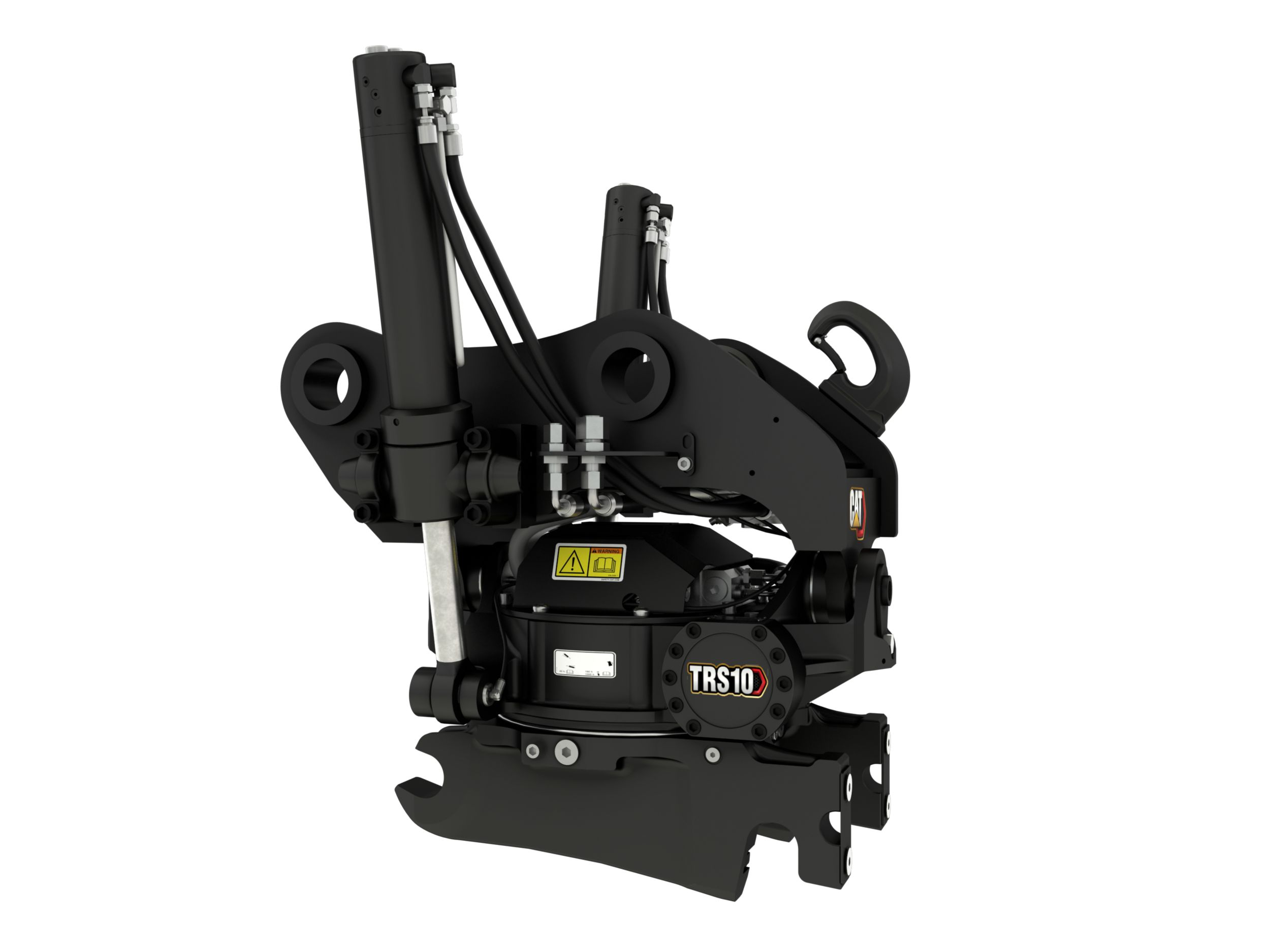

TRS10 Tiltrotator

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Machine Class
11-16 ton Excavators
Weight
1036lb
Interface Options: Top-Bottom
Pin-on / S60
Overall Height
40.55in
Length
31.69in
Overall Width
35.24in
Rotation Speed
7 seconds, per 1 full rotation
Tilt Angle Range +/-
40° Left/Right
Maximum Bucket Capacity
1.05yd³
Maximum Bucket Width
63in
