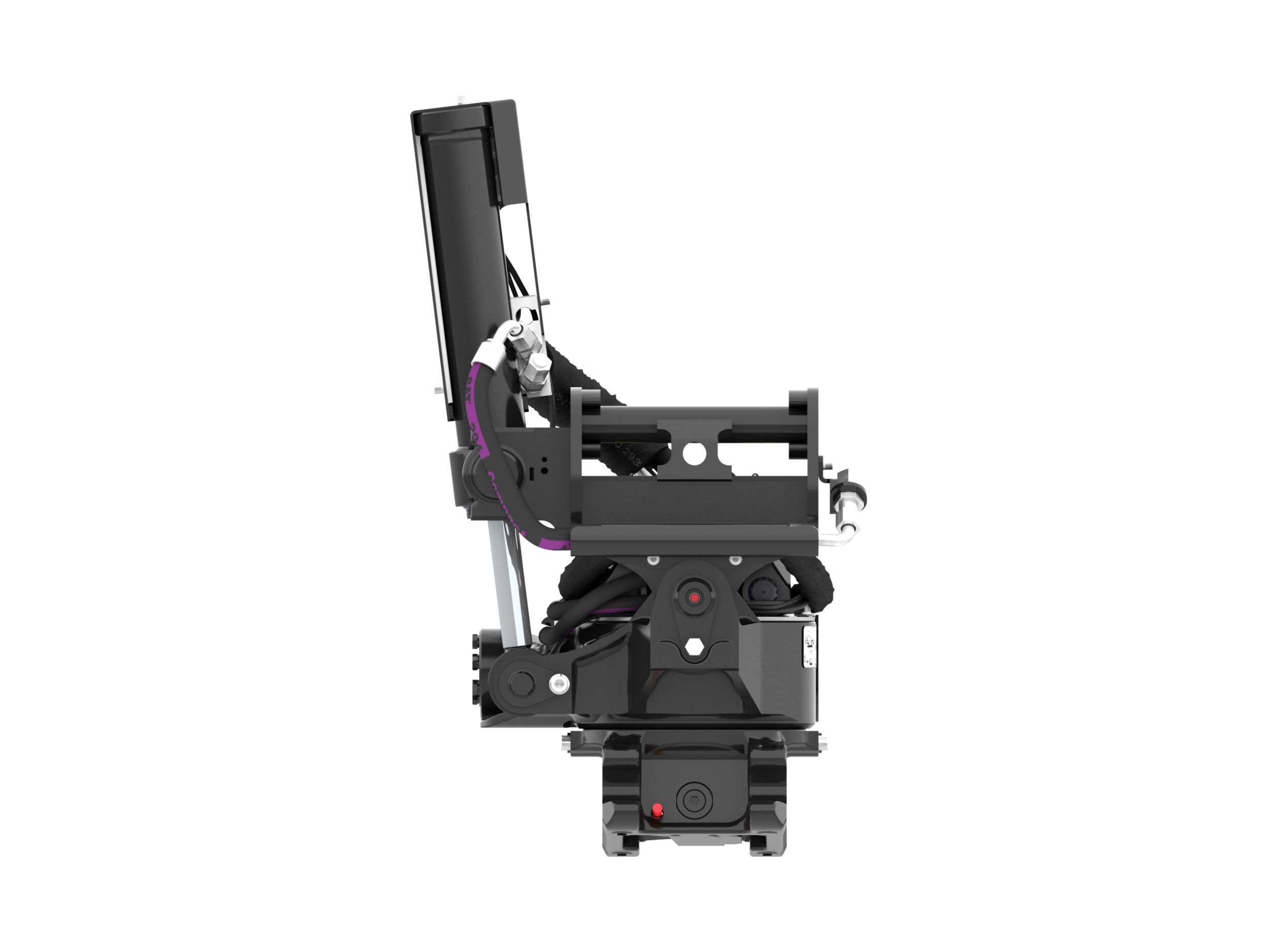

Exterior View

TRS6 Tiltrotator

Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.

Machine Class
6 Ton Mini Excavators
Weight
463lb
Interface Options: Top-Bottom
Pin On (Pin Grabber) / S-40
Overall Height
32.2in
Length
20.7in
Overall Width
19.3in
Rotation Speed
7 Seconds per 1 Full Rotation
Tilt Angle Range +/-
40 degrees left/right
Maximum Bucket Capacity
8.8ft³
Maximum Bucket Width
47.2in
Optimal Hydraulic Flow
45-80 L/min (12-21 gpm)
Maximum Operating Pressure
3625.9psi
Required Hydraulics
1st Auxiliary
Tilting Torque
10627lb/ft
Turning Torque
2876.5lb/ft
