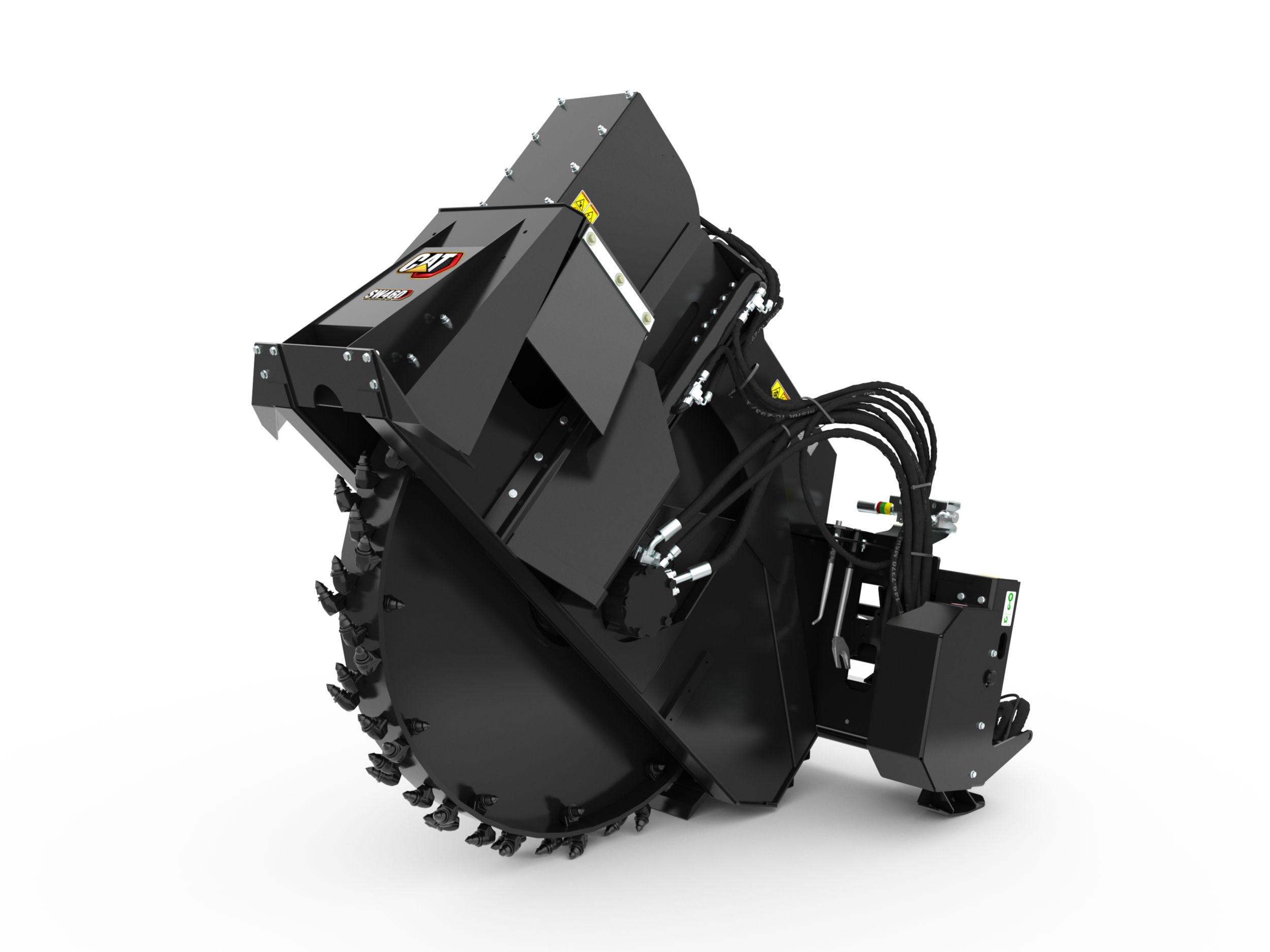

Exterior View

SW460, 200 mm (8 in) Wheel Saw

Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Maximum Cutting Depth
23.6in
Wheel Width
7.9in
Weight
2921.1lb
Overall Width
65.2in
Overall Height
69.5in
Length
95.2in
Required Hydraulics
High Flow XHP / XE
Optimal Hydraulic Flow
136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure
250-280 bar (3630-4000 psi)
Motor Displacement
102.9in³/rev
Wheel Torque at Maximum Pressure
5538.4lb/ft
Wheel Speed at Maximum Flow
89 RPM
Bit Speed at Maximum Flow
1410.8ft/min
Conical Bits – Per Wheel
96
Standard Bit Type
Concrete
Optional Bit Type
All Purpose
Side Shift Travel
21.7in
Trench Cleaning Device
Yes
Drive Method
Direct Drive
Interface Type
Skid Steer Coupler
