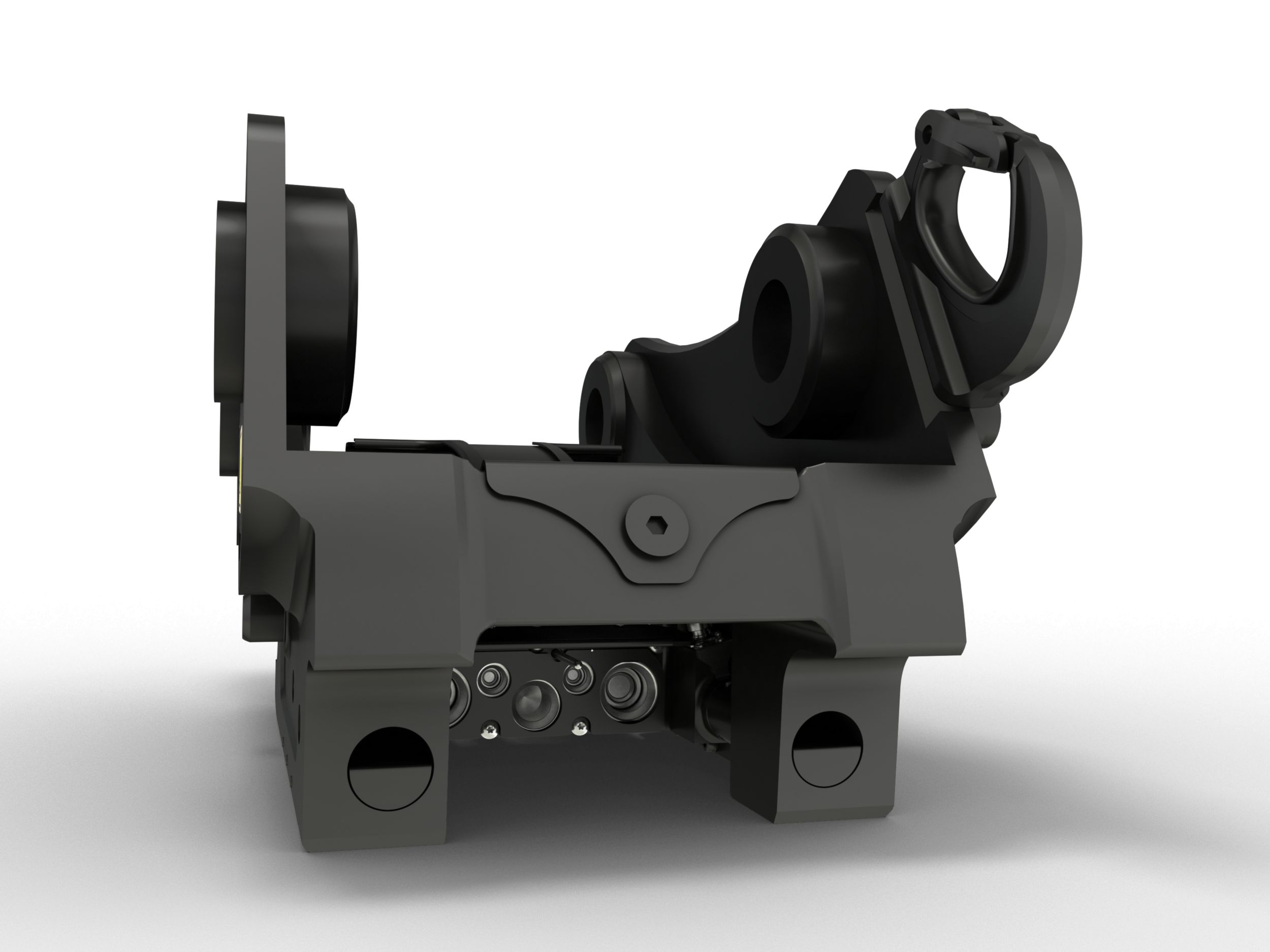

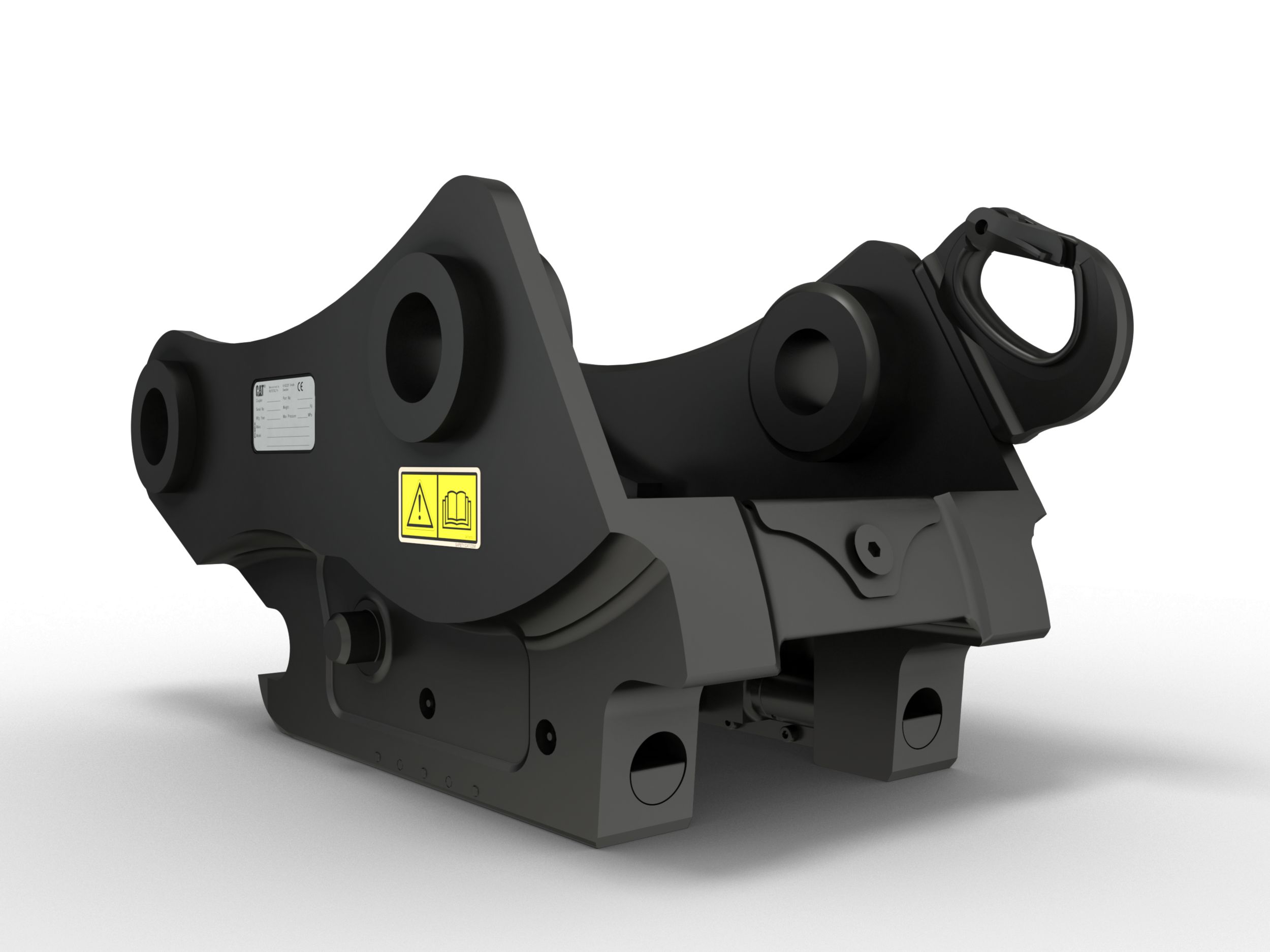

Hydraulic Connecting S Type Coupler HCS60: 590-2377

Cat® Hydraulic Connecting S Type Couplers connect to your machine’s hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Machine Class
12-19
Weight
390lb
Lift Hook Capacity
5ton (US)
Height
16.5in
Length
31.2in
Width
18.5in
Maximum Operating Pressure
5076psi
3/8″ Hydraulic Connectors (Mounted)
2
3/8″ Hydraulic Connector Flow
13gal/min
1/2″ Hydraulic Connectors (Optional)
1
1/2″ Hydraulic Connector Flow
21gal/min
3/4″ Hydraulic Connectors (Mounted)
2
3/4″ Hydraulic Connector Flow
59gal/min
