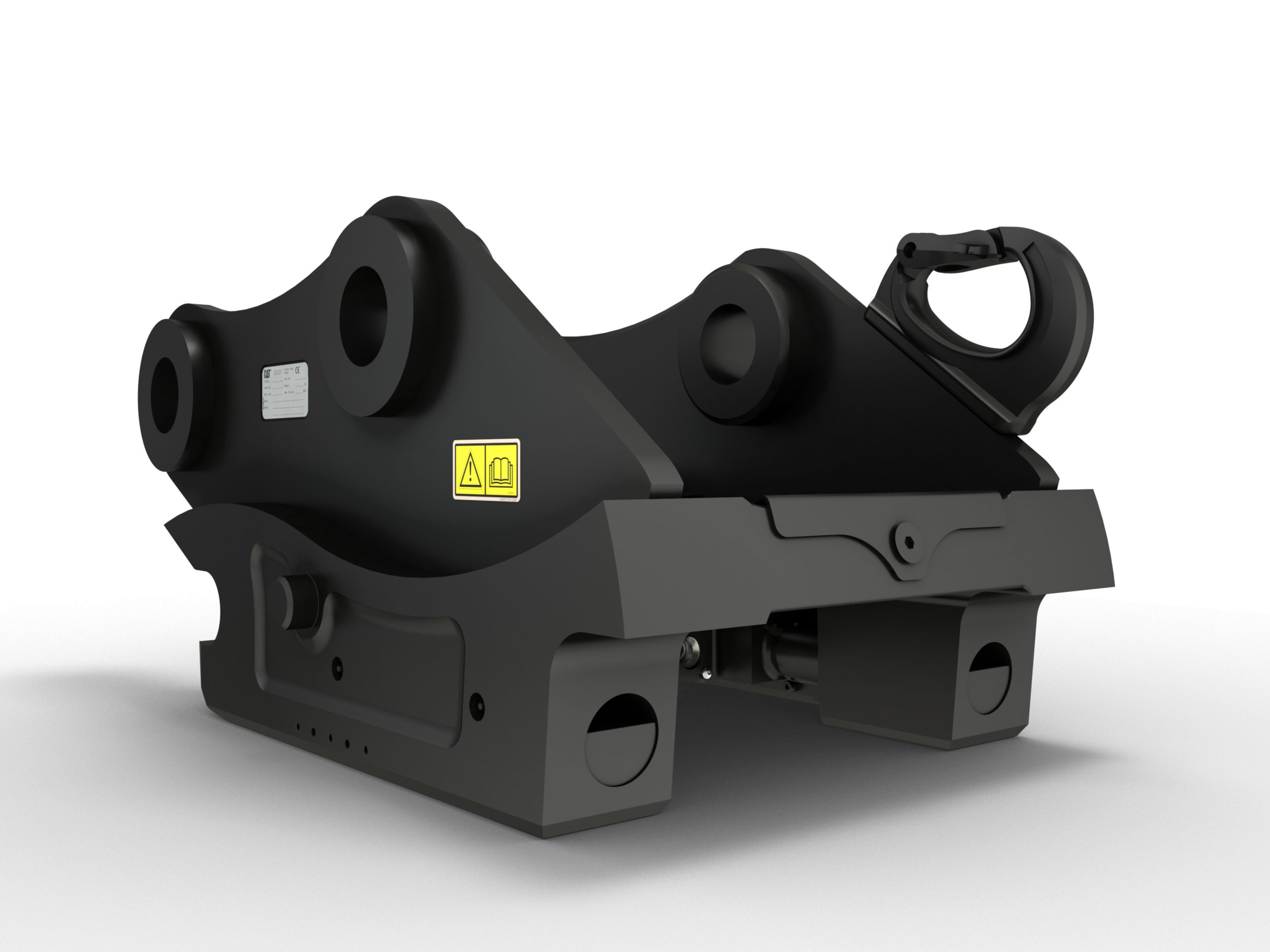

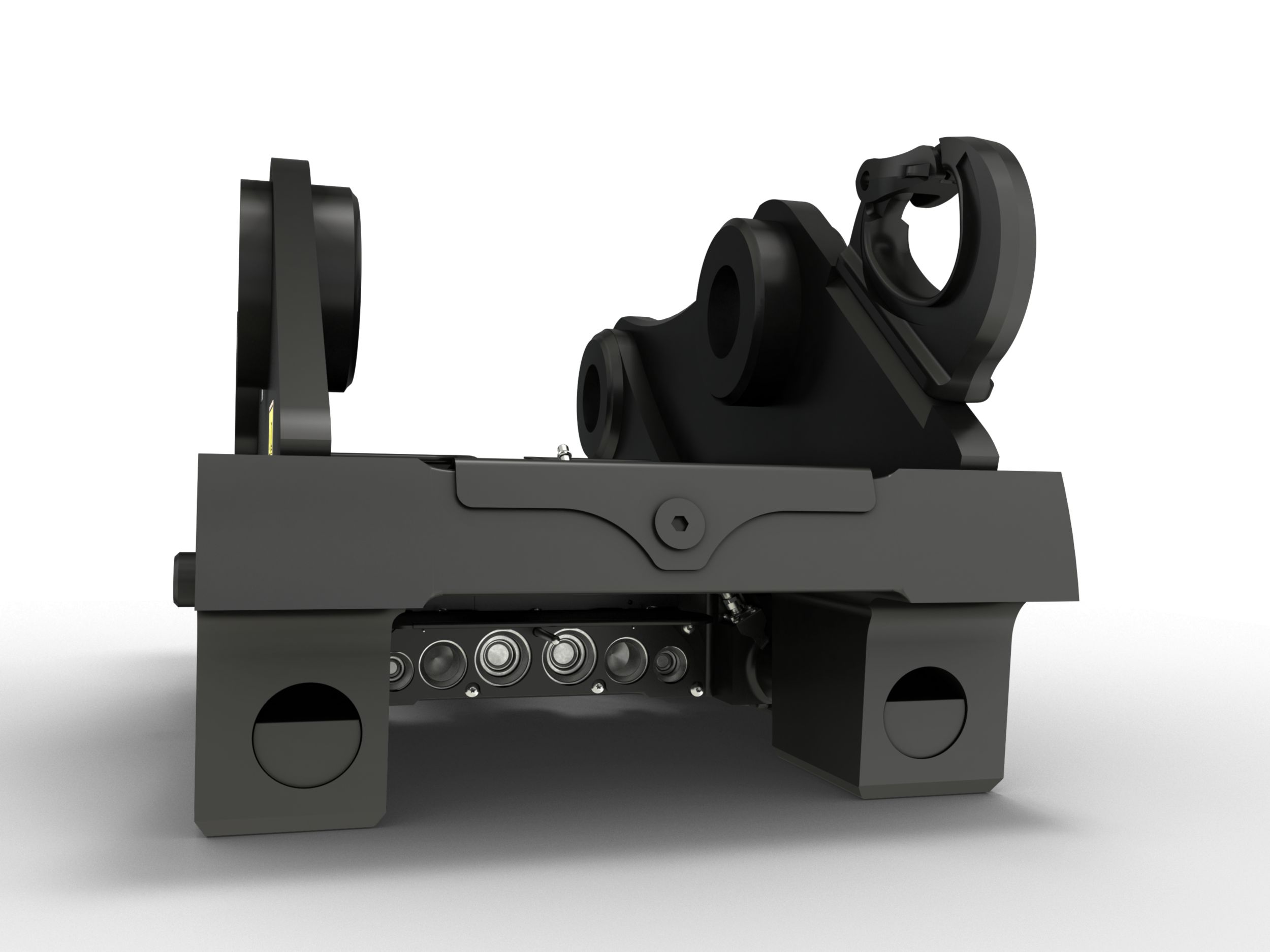

Hydraulic Connecting S Type Coupler HCS80: 583-0203

Cat® Hydraulic Connecting S Type Couplers connect to your machine’s hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Machine Class
24-40
Height
20.2in
Length
39.5in
Width
25.5in
Weight
959lb
Lift Hook Capacity
10ton (US)
Maximum Operating Pressure
5076psi
1/2″ Hydraulic Connectors (Mounted)
2
1/2″ Hydraulic Connector Flow
21gal/min
3/4″ Hydraulic Connectors (Optional)
2
3/4″ Hydraulic Connector Flow
59gal/min
1″ Hydraulic Connectors (Mounted)
2
1″ Hydraulic Connector Flow
100gal/min
