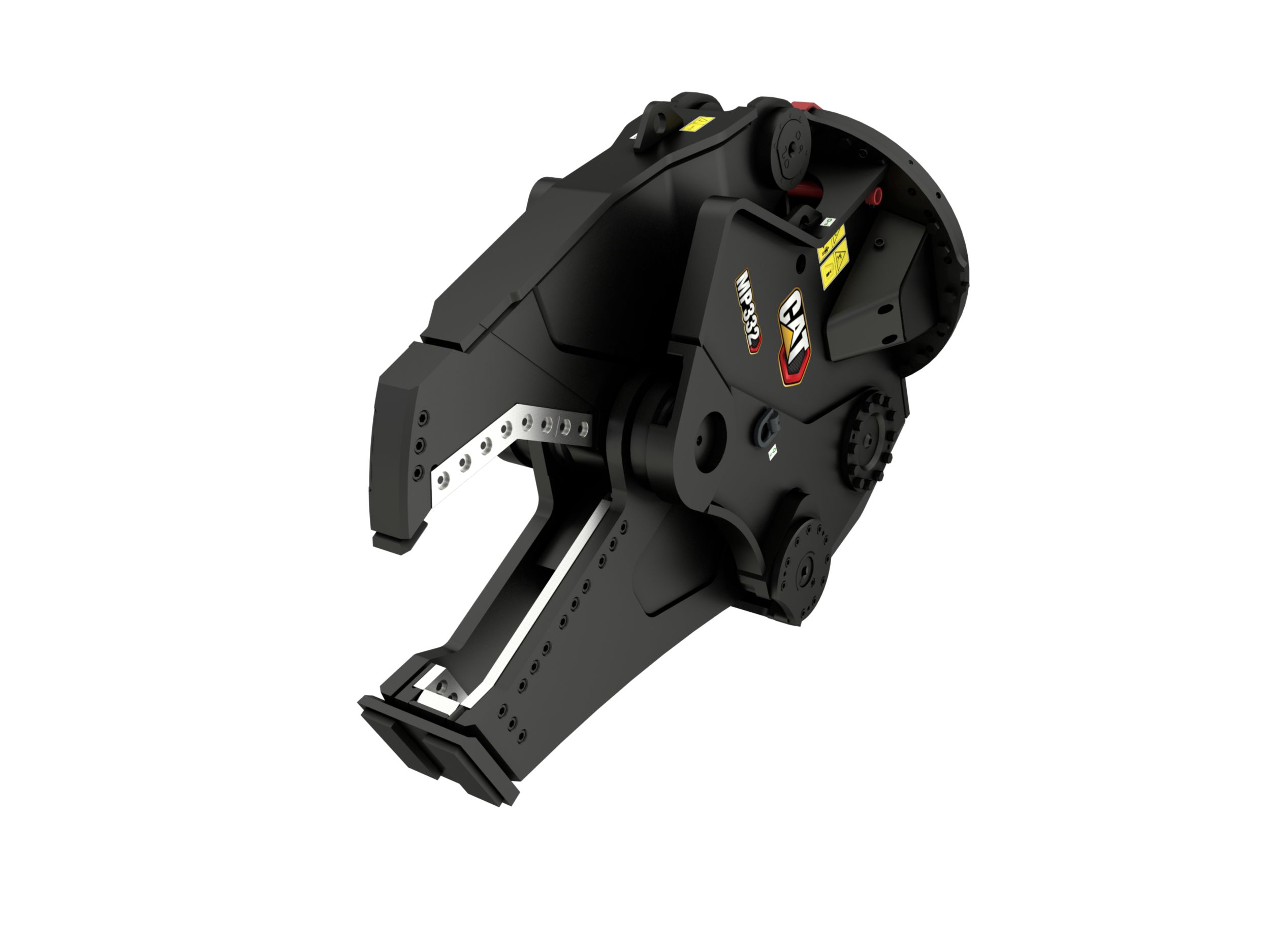

MP324 Shear Jaw

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Cycle Time – Open
1.9s
Cycle Time – Close
1.3s
Cutting Force – Blade Throat
887Sh Ton
Cutting Force – Blade Center
351Sh Ton
Cutting Force – Blade Tip
186Sh Ton
Excavator Minimum
32 tons
Excavator Maximum
50 tons
Jaw Circuit – Max. Oil Pressure
5076psi
Jaw Circuit – Max. Oil Flow
74gal/min
Rotation Circuit – Max. Oil Pressure
2321psi
Rotation Circuit – Max. Oil Flow
11gal/min
Jaw Depth
26.7in
Cutter Length
22.5in
Jaw Opening – Maximum
18.5in
Jaw Width – Fixed
13in
Jaw Width – Moveable
4.5in
Width
84.5in
Length
63.6in
Height
39.6in
Weight – Housing, Jaw and Bracket
7024lb
Weight – Jaw Only
2899lb
